Question: ! Required information For the beam and loading shown, consider section n - n . Given: P = 1 5 5 k N . Determine

!
Required information

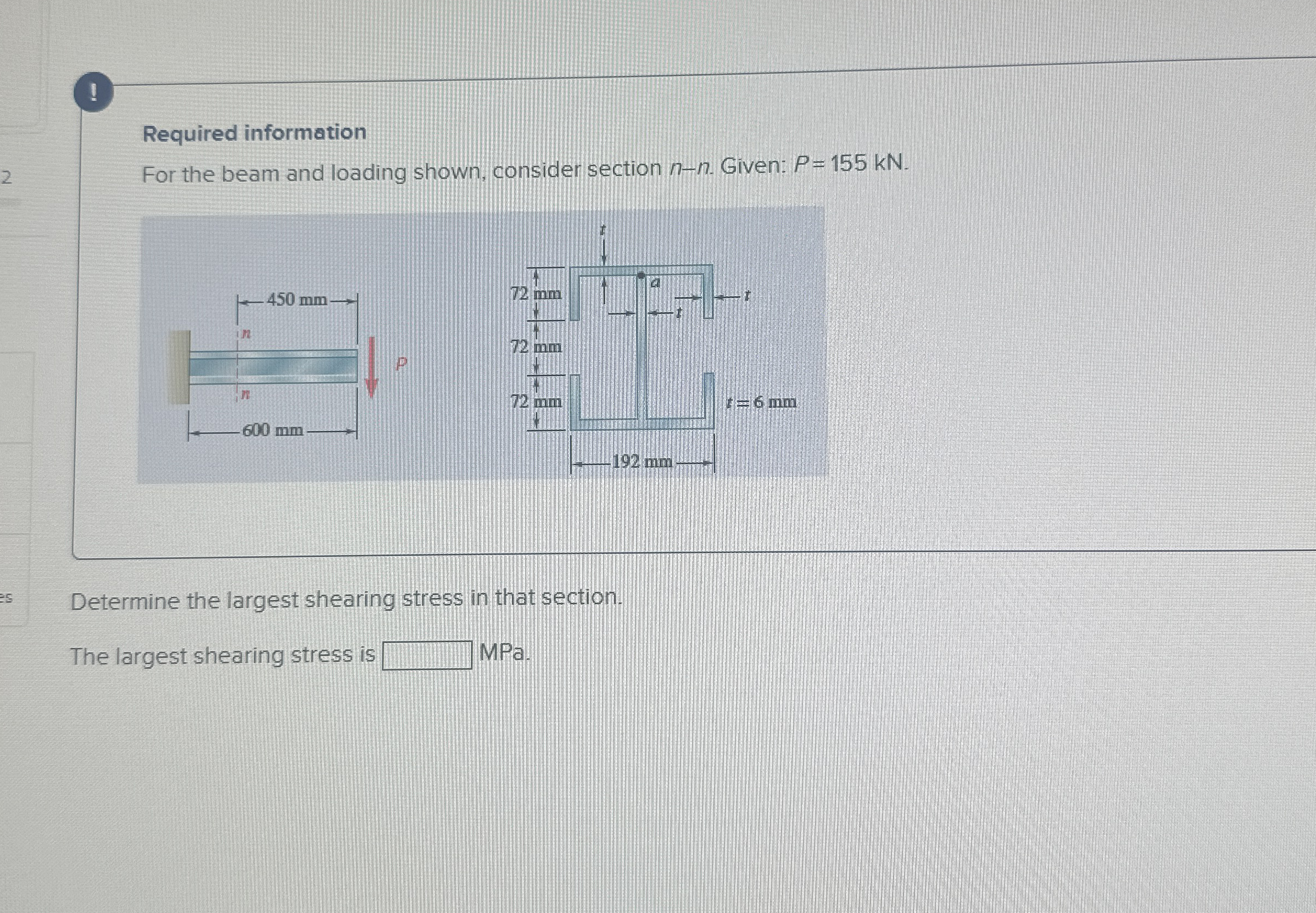

For the beam and loading shown, consider section n-n. Given: P=155kN.
Determine the largest shearing stress in that section.
The largest shearing stress is MPa .
! Required information For the beam and loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Required information For the beam and loading shown, consider section n-n. Given: P = 15 kips. P 20 kips 2 ft 2 ft 2 ft 2 ft Determine the largest shearing stress in that section. The largest...

Q:

For the beam and loading shown, cosider section and determine (a) the largest shearing stress in (b) shearing stress at point a: the that section.

Q:

Required information For the beam and loading shown, consider section \ ( n - n \ ) . Given: \ ( P = 1 6 0 \ mathrm { kN } \ ) . Determine the shearing stress at point \ ( a \ ) . The shearing stress...

Q:

Question 3 [ 5 marks ] [ A 3 , A 4 , B 2 ] For the beam and loading shown, consider section n - n , determine: ( a ) The maximum normal stress, ( b ) The niaximum shearing stress, ( c ) Draw the...

Q:

6.9 through 6.12 For the beam and loading shown, consider section n-n and determine (a) the largest shearing stress in that section, (b) the shearing stress at point a. 15,15 30 15 15 20 0.5 m 72 kN...

Q:

6 . 9 through 6 . 1 2 For the beam and loading shown, consider sec - tion n - n and determine ( a ) the largest shearing stress in that section, ( b ) the shearing stress at point a .

Q:

6 . 9 through 6 . 1 2 For the beam and loading shown, consider section n - n and determine ( a ) the largest shearing stress in that section, ( b ) the shearing stress at point a . 1 0 kips 1 0 kips...

Q:

( 1 ) For the beam and loading shown, consider section n - n and determine ( a ) the largest shearing stress in that section ( b ) the shearing stress at point a

Q:

please give step by step solution For the beam and loading shown, consider section n - n and determine ( a ) the largest shearing stress in that section, ( b ) the shearing stress at point a .

Q:

! Required information Consider the beam and loading shown where P = 3 6 kips. From the figures given below, identify the correct shear diagram and determine the maximum absolute value of the shear....
