Question: Required information - please answer w work for understanding! thank you A load P is supported as shown by a steel pin that has been

Required information - please answer w work for understanding! thank you

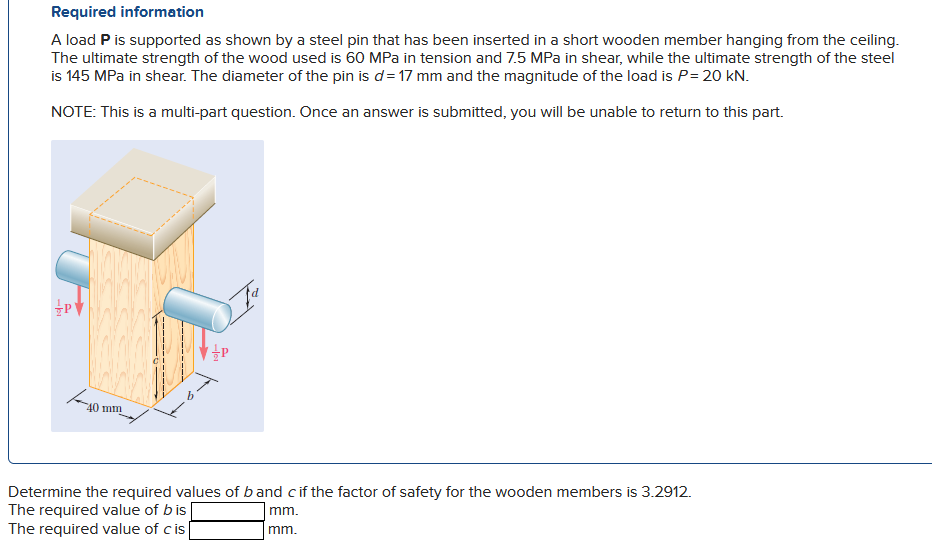

A load P is supported as shown by a steel pin that has been inserted in a short wooden member hanging from the ceiling.
The ultimate strength of the wood used is 60 MPa in tension and 7.5 MPa in shear, while the ultimate strength of the steel
is 145 MPa in shear. The diameter of the pin is d=17mm and the magnitude of the load is P=20kN.
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part.
Determine the required values of b and c if the factor of safety for the wooden members is 3.2912.
The required value of b is
mm .
The required value of c is
mm .
