Required information

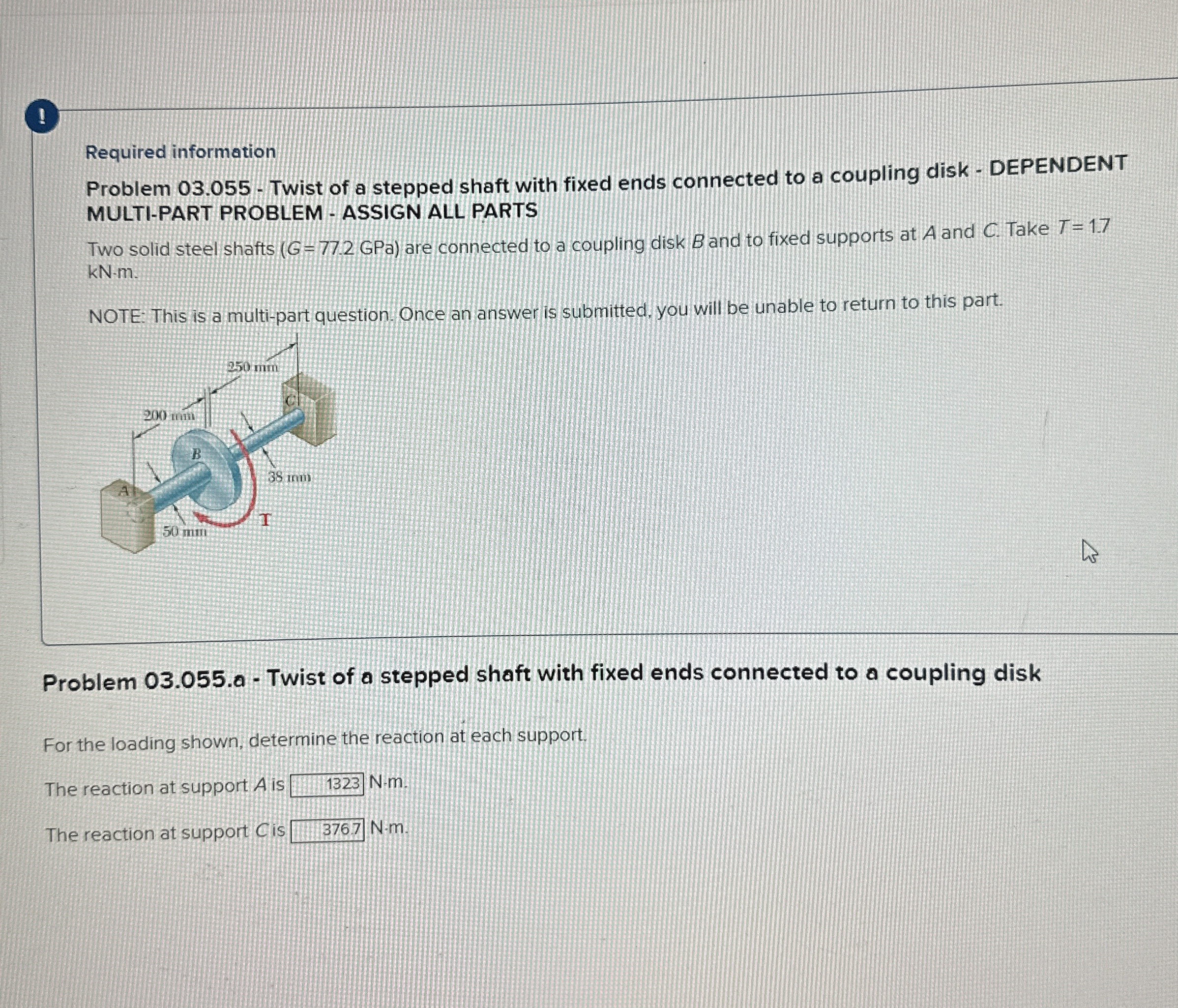

Problem $03\mathrm{.}055-$ Twist of a stepped shaft with fixed ends connected to a coupling disk $-$ DEPENDENT

MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS

Two solid steel shafts $(G=77\mathrm{.}2$ GPa$)$ are connected to a coupling disk $B$ and to fixed supports at A and $C.$ Take $T=1\mathrm{.}7$

$kN-m.$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

Problem $03\mathrm{.}055.$a $-$ Twist of a stepped shaft with fixed ends connected to a coupling disk

For the loading shown, determine the reaction at each support.

The reaction at support $A$ is

$N*m.$

The reaction at support $C$ is

N$$m$.$
