Required information

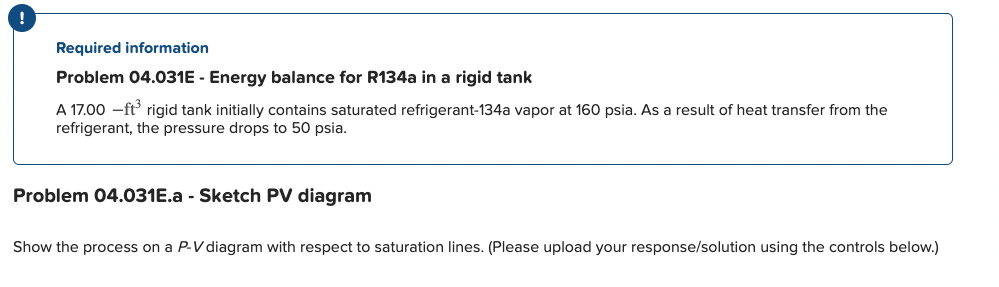

Problem $04\mathrm{.}031$E $-$ Energy balance for R$134$a in a rigid tank

A $\backslash (17\mathrm{.}00-\backslash$mathrm$\{$ft$\}^\{3\}\backslash )$ rigid tank initially contains saturated refrigerant$-134$a vapor at $160$ psia $.$ As a result of heat transfer from the refrigerant, the pressure drops to $50$ psia.

Problem $04\mathrm{.}031$E$.$a $-$ Sketch PV diagram

Show the process on a $\backslash ($ P $\backslash )-\backslash ($ V $\backslash )$ diagram with respect to saturation lines. $($Please upload your response$/$solution using the controls below.$)$
