Required information

Problem $04\mathrm{.}152-$ Plate with hinges $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS.

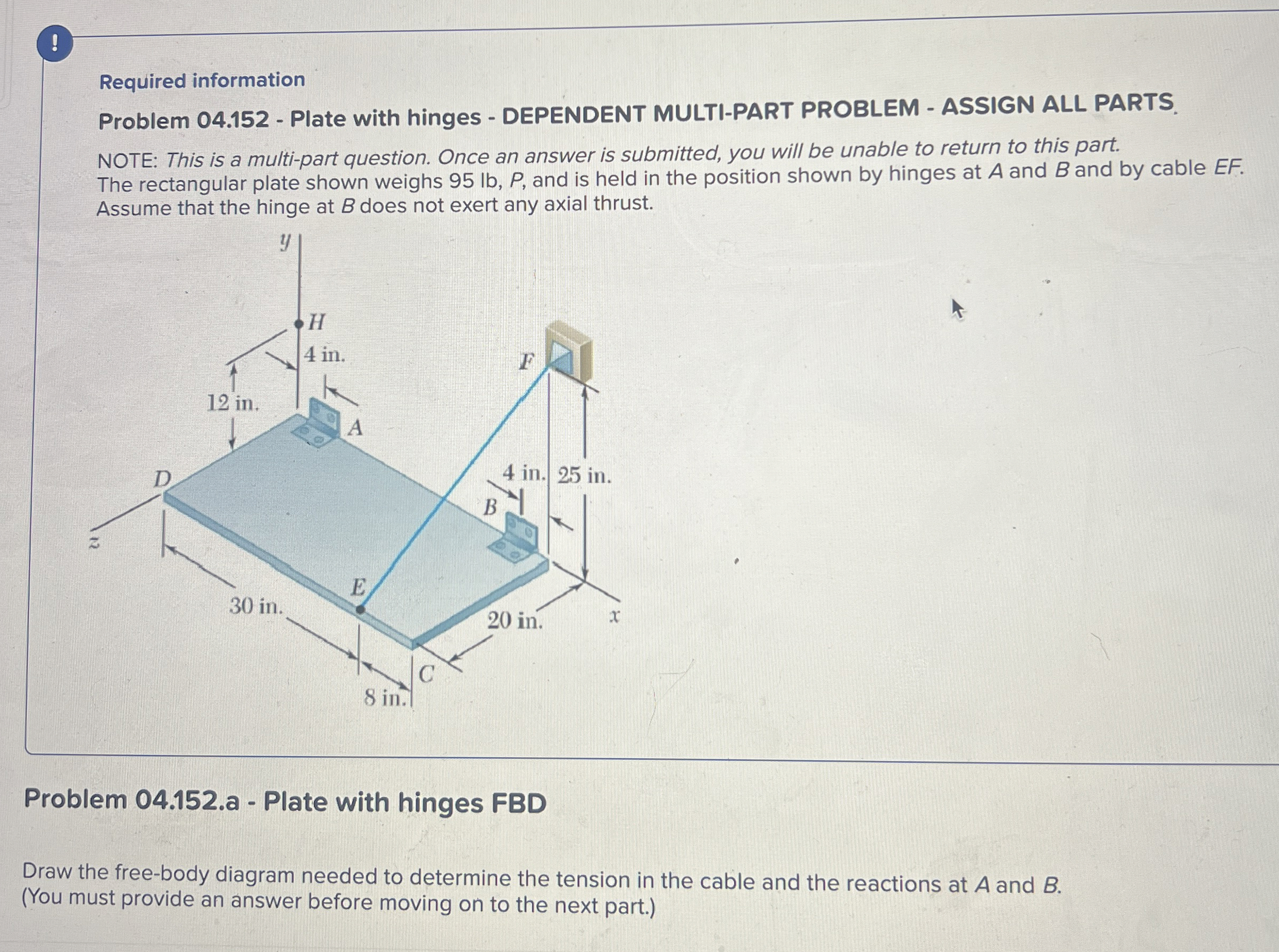

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part. The rectangular plate shown weighs $95lb,P,$ and is held in the position shown by hinges at A and $B$ and by cable EF$.$ Assume that the hinge at $B$ does not exert any axial thrust.

Problem $04\mathrm{.}152.$a $-$ Plate with hinges FBD

Draw the free$-$body diagram needed to determine the tension in the cable and the reactions at A and $B.($You must provide an answer before moving on to the next part.$)$
