Required information

Problem $07\mathrm{.}006-$ A loaded frame

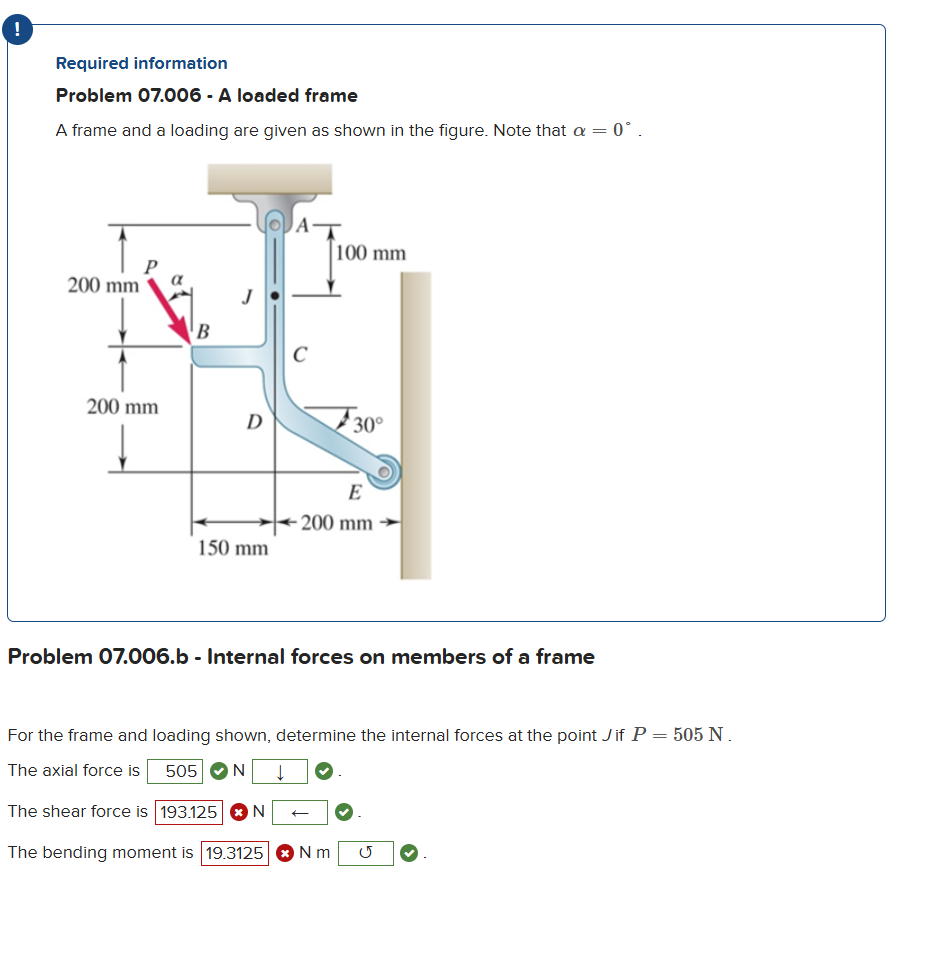

A frame and a loading are given as shown in the figure. Note that $\backslash (\backslash$alpha$=0^\{\backslash$circ$\}\backslash ).$

Problem $07\mathrm{.}006.$b $-$ Internal forces on members of a frame

For the frame and loading shown, determine the internal forces at the point $\backslash ($ J $\backslash )$ if $\backslash ($ P$=505\backslash$mathrm$\{$~N$\}\backslash ).$

The axial force is

The shear force isN

The bending moment is
