Required information

Problem $07\mathrm{.}093-$ Point loads applied to a cable with level supports $-$ DEPENDENT MULTI$-$PART

PROBLEM $-$ ASSIGN ALL PARTS

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

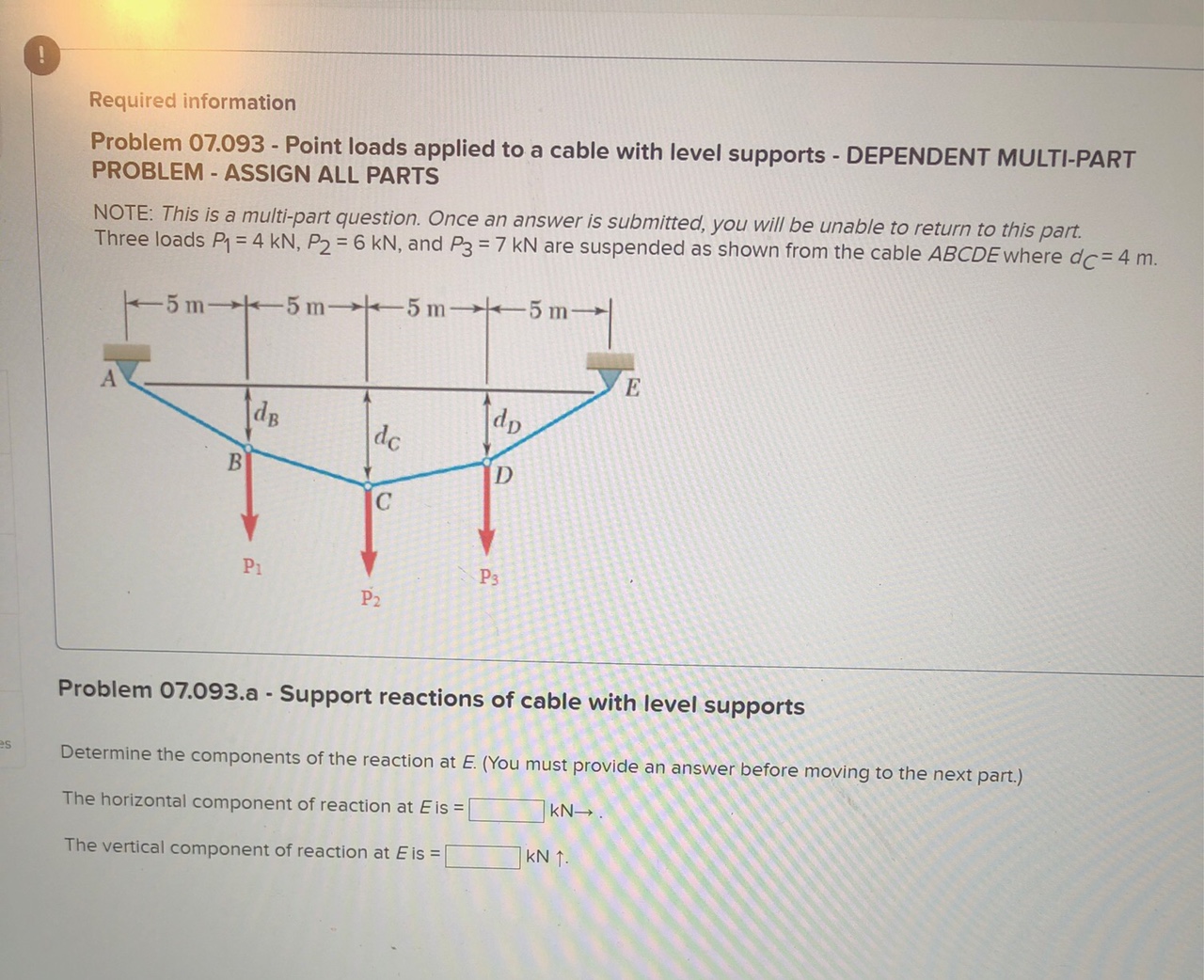

Three loads $P_1=4kN,P_2=6kN,$ and $P_3=7kN$ are suspended as shown from the cable ABCDE where $d_C=4m.$

Problem $07\mathrm{.}093.$a $-$ Support reactions of cable with level supports

Determine the components of the reaction at $E.($You must provide an answer before moving to the next part.$)$

The horizontal component of reaction at $E$ is $=$

$kN.$

The vertical component of reaction at $E$ is $=$

$karr.$
