Problem $07\mathrm{.}100-$ Reactions of cable with uneven supports knowing deflected shape $-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part. Consider the given figure with loads acting on the cable. Assume portion $DE$ of the cable is horizontal. Given: $B=5\mathrm{.}5$kips,$C=1$kips, and $D=2$kips.

Problem $07\mathrm{.}100.$a $-$ Reactions of cable with uneven supports knowing deflected shape

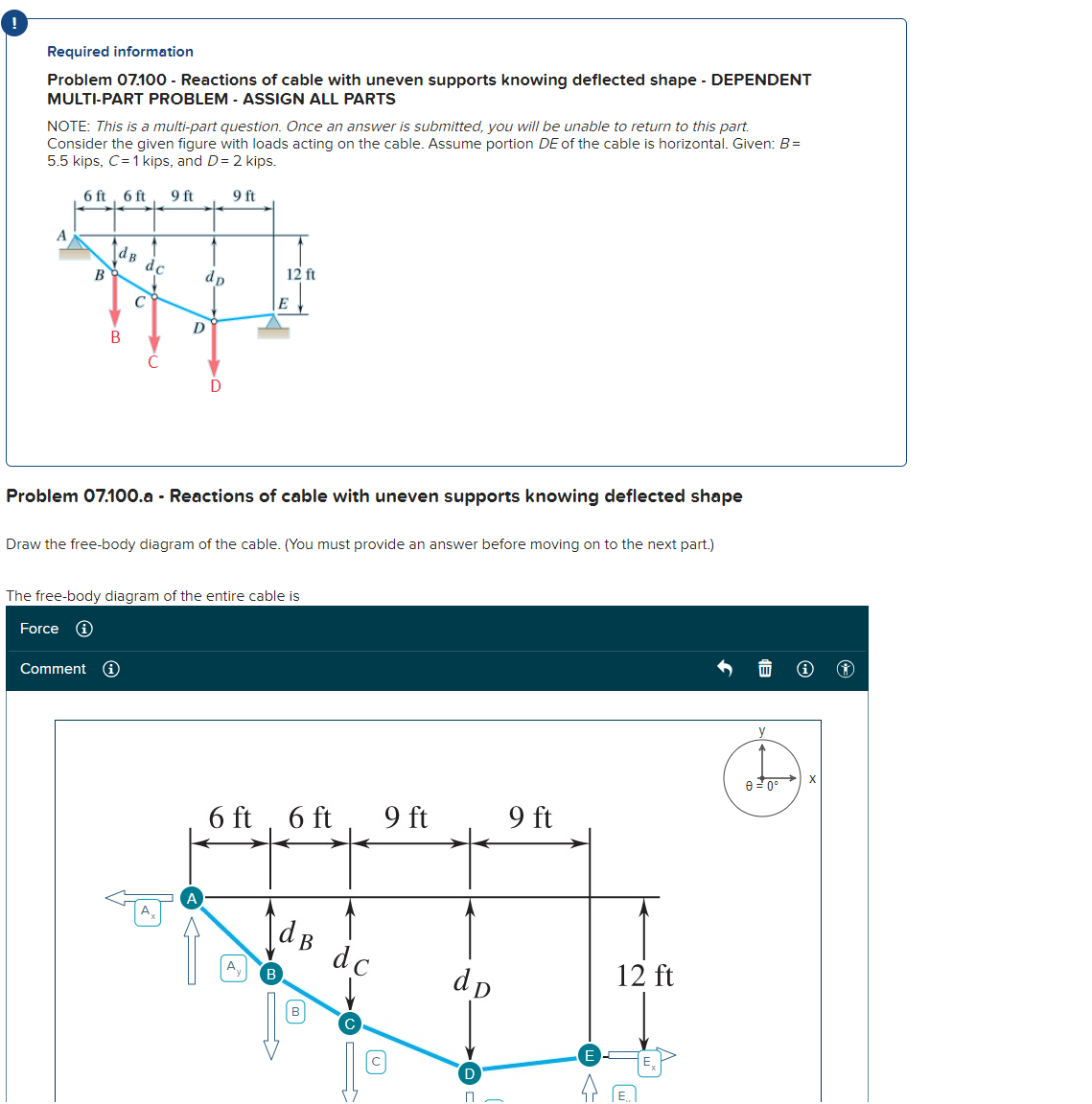

Draw the free$-$body diagram of the cable. $($You must provide an answer before moving on to the next part.$)$

The free$-$body diagram of the entire cable is

Force $($i$)$

Comment

$($i$)$
