Required information

Process$-$Oriented Problem $06\mathrm{.}002-$ Shear and normal stress due to bending$-$ DEPENDENT MULTIPART PROBLEM$-$ ASSIGN ALL PARTS

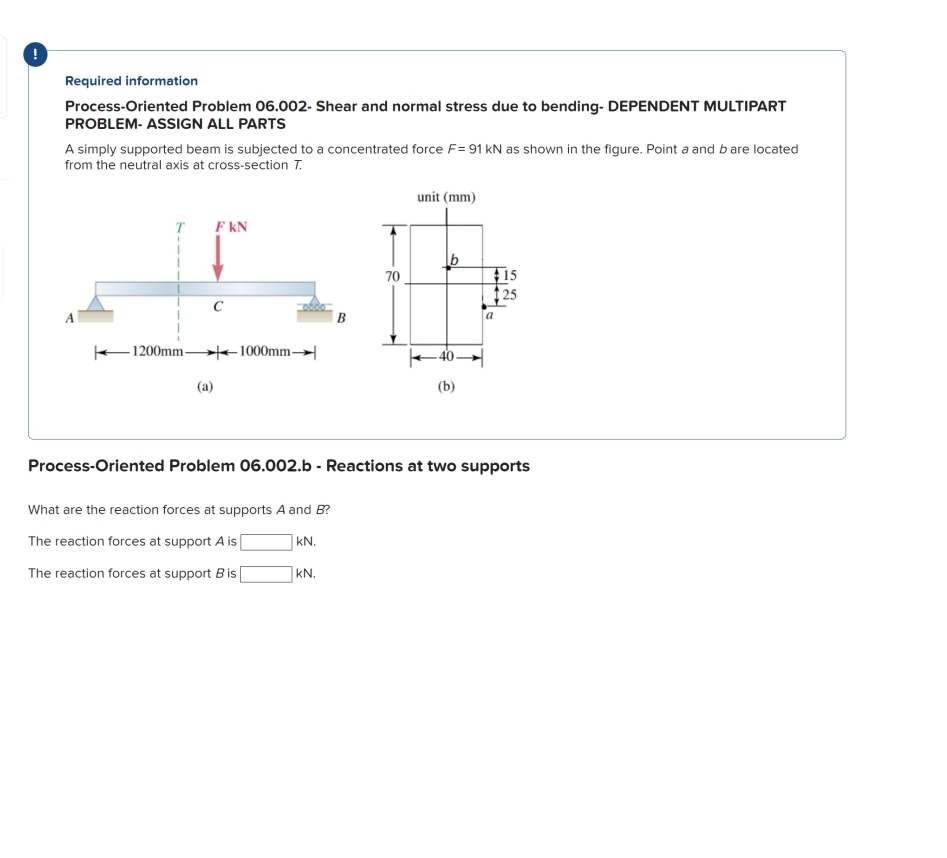

A simply supported beam is subjected to a concentrated force $F=91kN$ as shown in the figure. Point a and $b$ are located from the neutral axis at cross$-$section $T.$

Process$-$Oriented Problem $06\mathrm{.}002.$b $-$ Reactions at two supports

What are the reaction forces at supports A and $B?$

The reaction forces at support $A$ is

$kN$

The reaction forces at support $B$ is

kN $.$
