Required information

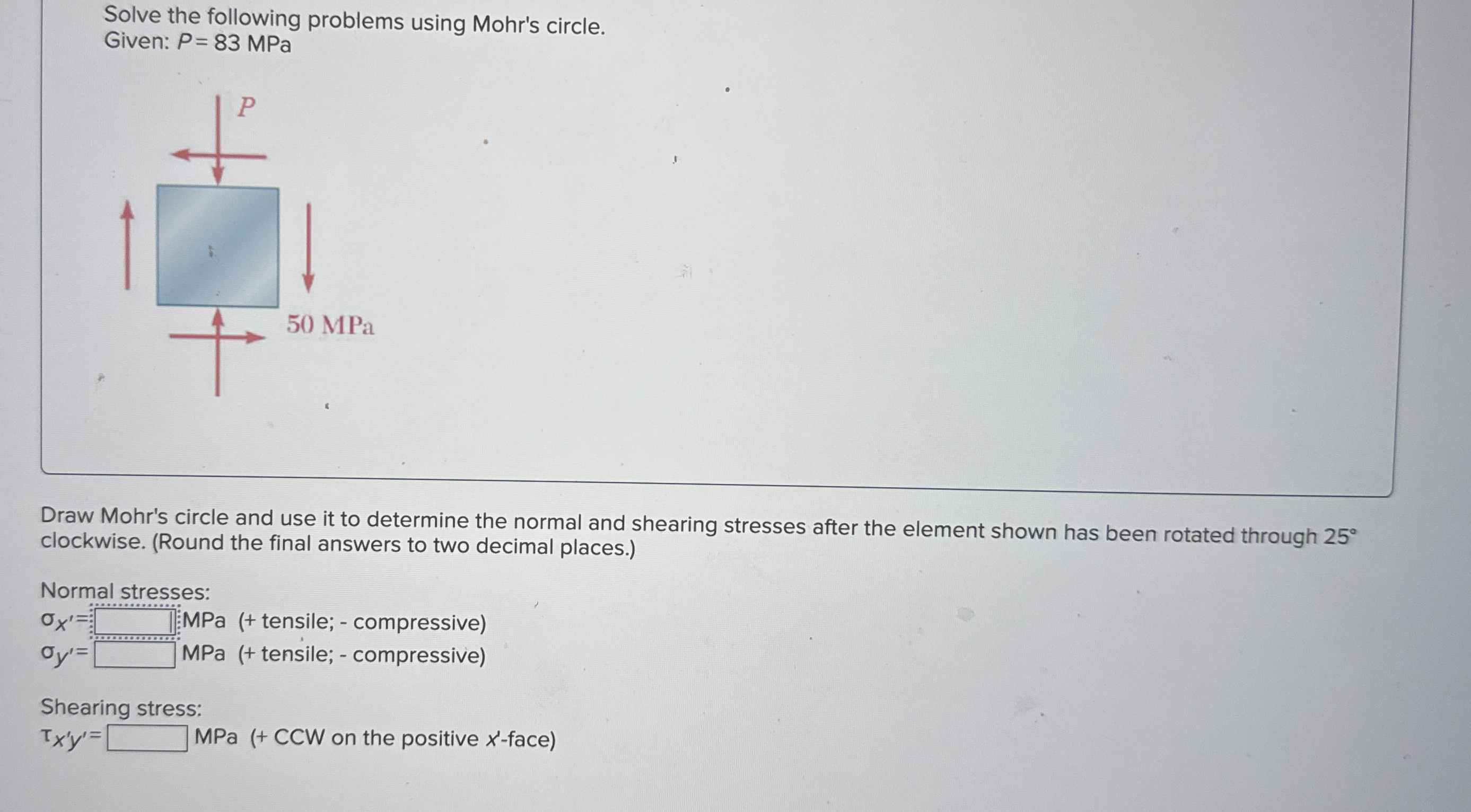

Solve the following problems using Mohr's circle.

Given: $P=83$MPa

Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through $25$ clockwise. $($Round the final answers to two decimal places.$)$

Normal stresses:

${}_{x^{\text{'}}}=,$MPa $(+$ tensile; $-$ compressive$)$

${}_{y^{\text{'}}}=MPa(+$ tensile; $-$ compressive$)$

Shearing stress:

${}_x{y}^{\text{'}}{?}^{\text{'}}=$ MPa $(+$ CCW on the positive $x^{\text{'}}-$face$)$

Solve the following problems using Mohr's circle.

Given: $P=83$MPa

Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through $25$ clockwise. $($Round the final answers to two decimal places.$)$

Normal stresses:

${}_{x^{\text{'}}}=,$MPa $(+$ tensile; $-$ compressive$)$

${}_{y^{\text{'}}}=,$MPa $(+$ tensile; $-$ compressive$)$

Shearing stress:

${}_{x^{\text{'}}{y}^{\text{'}}}=$ MPa $(+$ CCW on the positive $x^{\text{'}}-$face$)$
