Question: Required information The load P = 5 4 l b can be moved along the line of action shown and applied at A , D

Required information

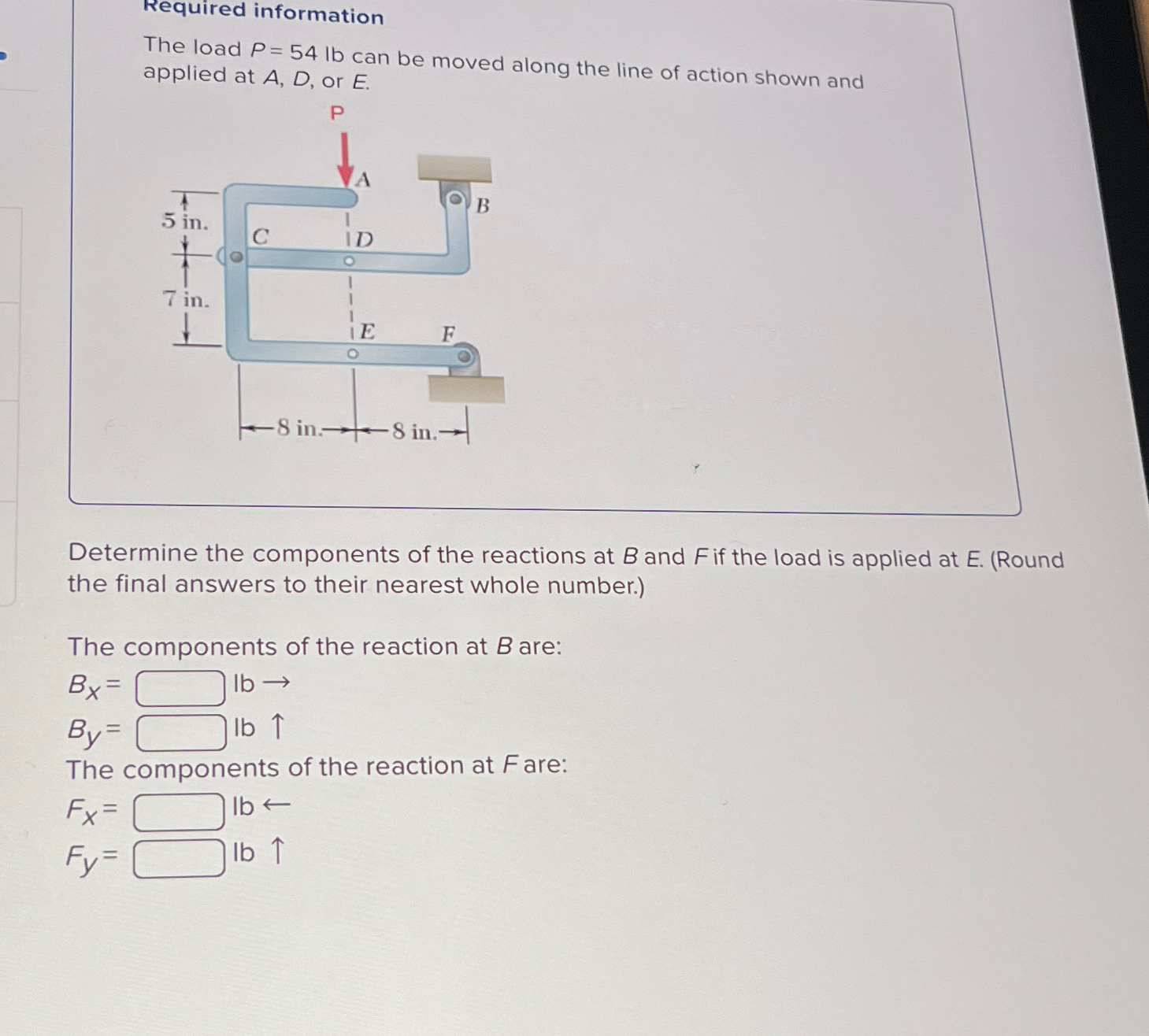

The load P=54lb can be moved along the line of action shown and applied at A,D, or E.
Determine the components of the reactions at B and F if the load is applied at E.(Round the final answers to their nearest whole number.)
The components of the reaction at B are:
Bx=,lb
By=,lbuarr
The components of the reaction at F are:
Fx=,lblarr
Fy=,lbuarr
Required information The load P = 5 4 l b can be

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
