Question: Required information The machine part ( A B C ) is supported by a frictionless hinge at ( B ) and

Required information

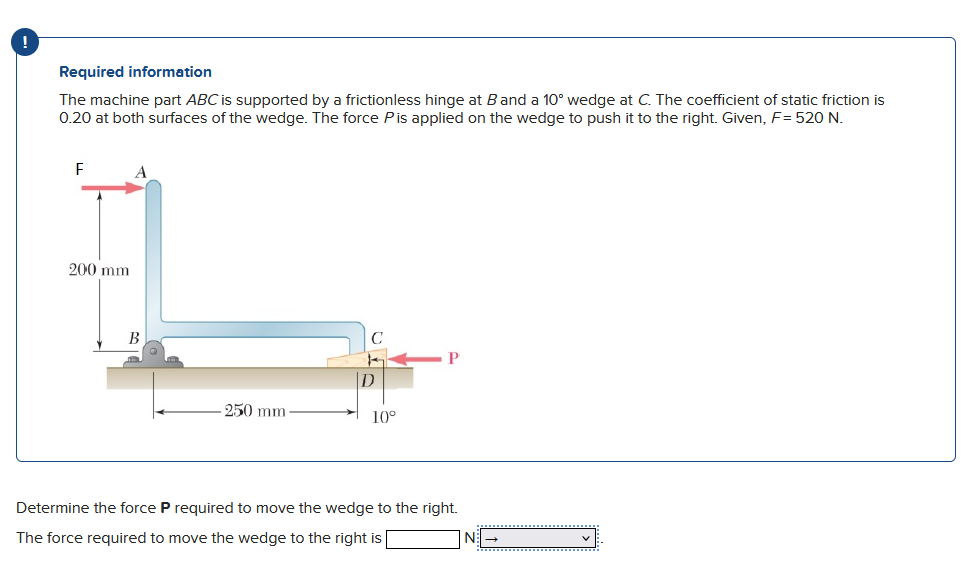

The machine part \( A B C \) is supported by a frictionless hinge at \( B \) and a \(10^{\circ}\) wedge at \( C \). The coefficient of static friction is 0.20 at both surfaces of the wedge. The force \( P \) is applied on the wedge to push it to the right. Given, \( F=520\mathrm{~N}\).
Determine the force \(\mathbf{P}\) required to move the wedge to the right.
The force required to move the wedge to the right is
Required information The machine part \ ( A B C \
