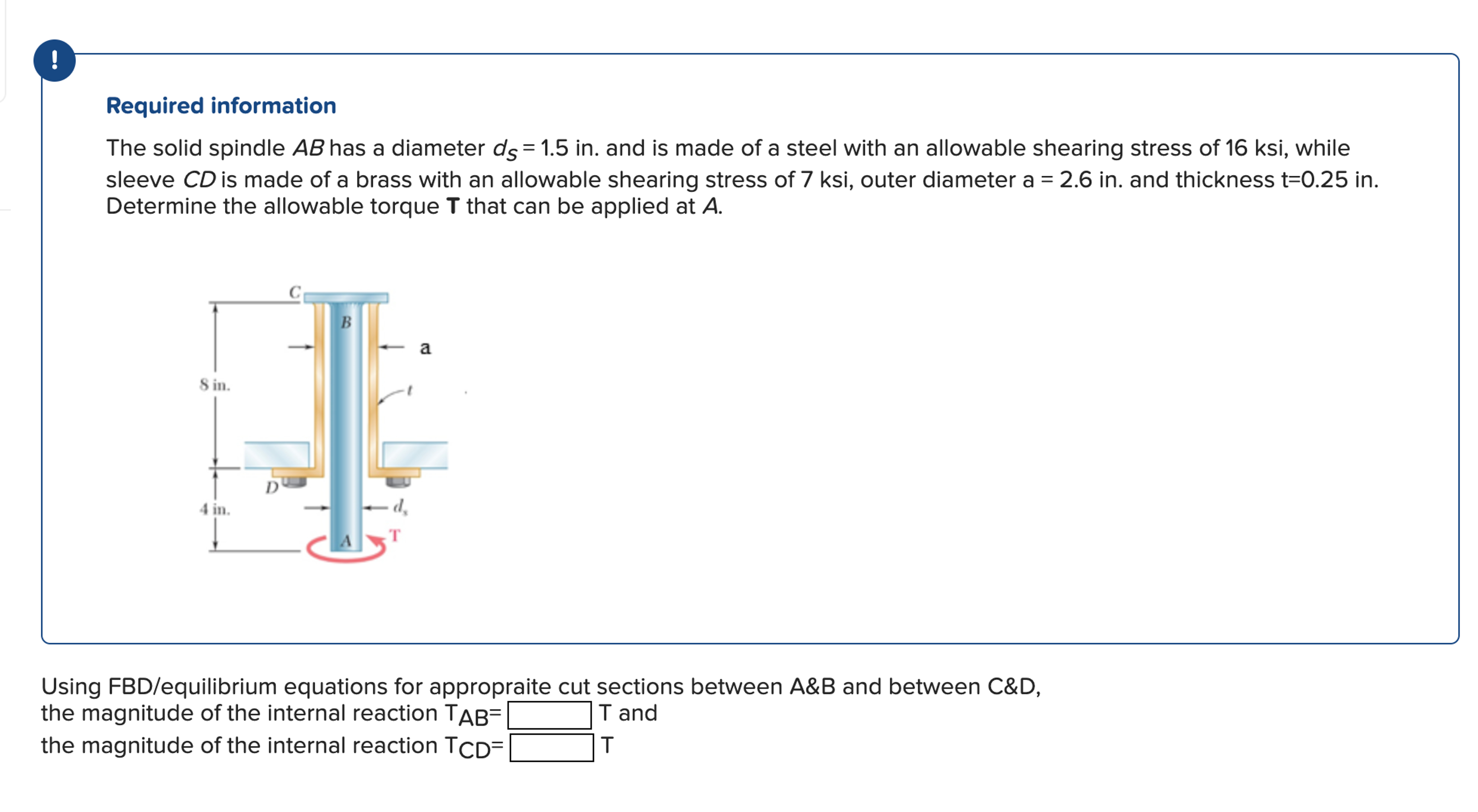

Question: Required information The solid spindle A B has a diameter d S = 1 . 5 i n . and is made of a steel

Required information
The solid spindle AB has a diameter dS=1.5in. and is made of a steel with an allowable shearing stress of 16 ksi, while
sleeve CD is made of a brass with an allowable shearing stress of 7 ksi , outer diameter a=2.6in. and thickness t=0.25in.
Determine the allowable torque T that can be applied at A.
Using FBD/equilibrium equations for appropraite cut sections between A&B and between C&D,
the magnitude of the internal reaction TAB=,T and
the magnitude of the internal reaction TCD=T
