Question: Required information Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Given: P = 1 5

Required information

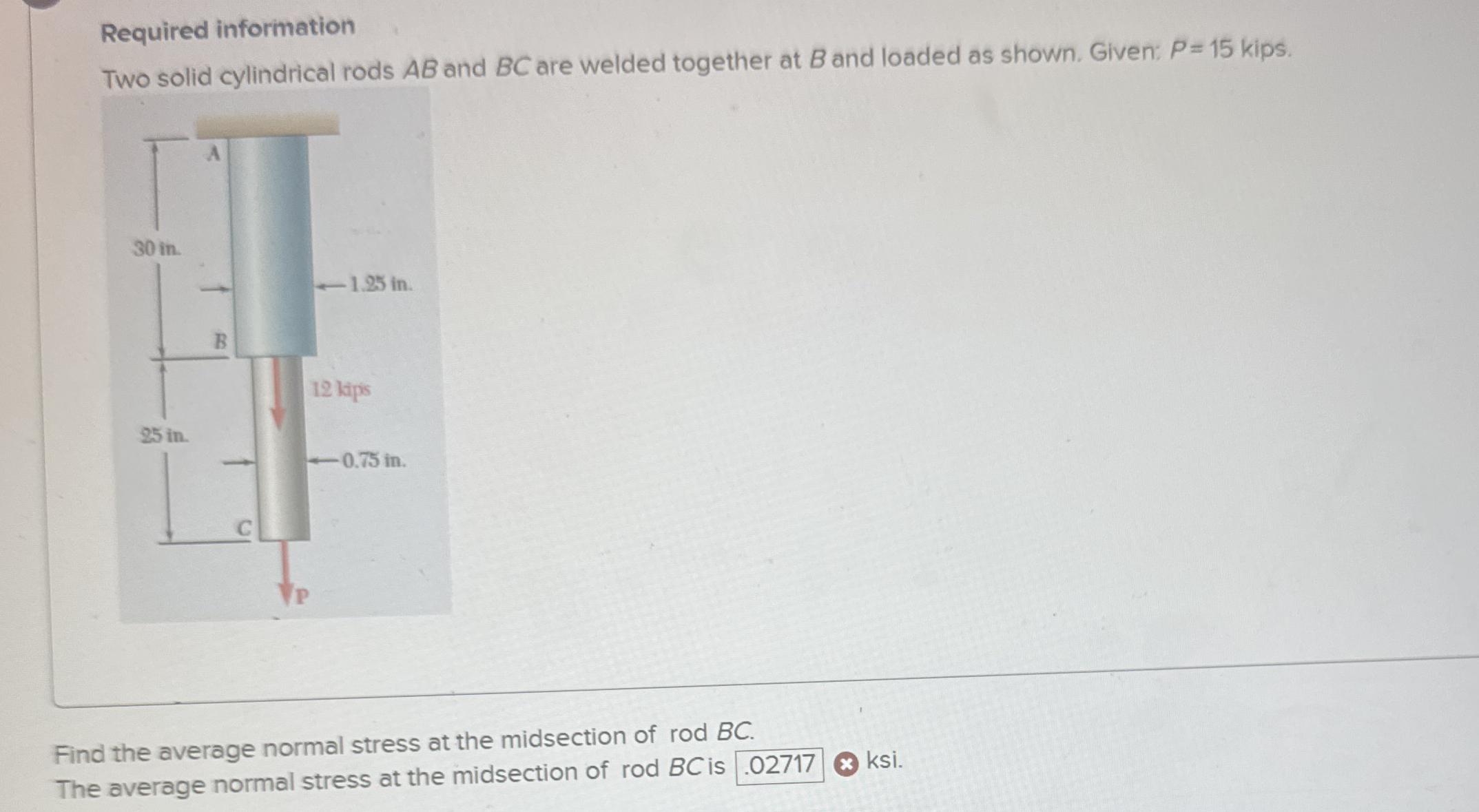

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Given: P=15 kips.
Find the average normal stress at the midsection of rodBC.
The average normal stress at the midsection of rodBC is ksi.
Required information Two solid cylindrical rods A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

! Required information Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Knowing that the magnitude of the average normal stress must not exceed 1 5 5 MPa in either...

Q:

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Knowing that P=10 kips, find the average normal stress at the midsection of rod AB, rod BC. 30 in 25 in A B P 1.25...

Q:

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Take d = 30 mm, d2 = 50 mm, and P 60 kN. = P 0.9 m 125 kN 125 kN 1.2 m Find the average normal stress at the...

Q:

Question 1: [10 marks] - Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. The two rods are made of different tensile strength steel. Use Esteel = 200 GPa. A) Knowing...

Q:

300 mm 250 mm B d 40 kN PROBLEM 1.2 Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Knowing that d = 50 mm and d = 30 mm, find the average normal stress at the...

Q:

Problem 1 . Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Knowing that P = 1 0 kips, find the average normal stress at the midsection of ( a ) r o d A B , ( b )...

Q:

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Knowing that the average normal stress must not exceed 150 MPa in either rod, determine the smallest allowable...

Q:

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. The average normal stress at section F is A1-200mm B A2- 400mm 300 kN 150 kN 100 KN 0.7 m p.2 m 0.6 m 0.4 m Select...

Q:

The structure below consists of two cylindrical rods \ ( A B \ ) and \ ( B C \ ) that is welded together at \ ( B \ ) and fixed to the wall at \ ( C \ ) . Rod \ ( B C \ ) is a solid rod with diameter...

Q:

Axial loads are applied with rigid bearing plates to the solid cylindrical rods shown in the figure. One load of P = 34 kips is applied to the assembly at A, two loads of Q = 30 kips are applied at...
