Required Information

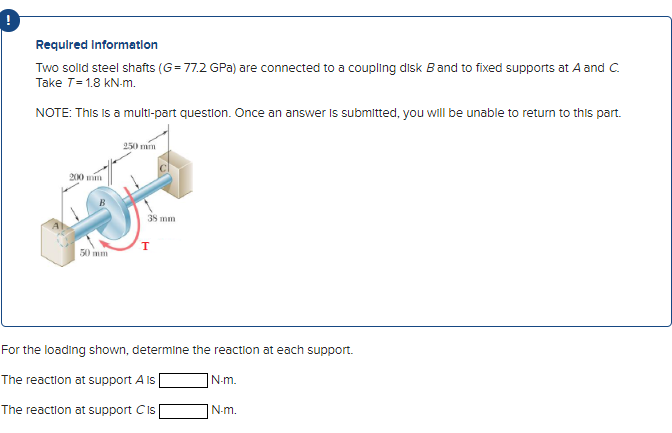

Two solid steel shafts $(\backslash ($ G$=77\mathrm{.}2\backslash$mathrm$\{$GPa$\}\backslash ))$ are connected to a coupling disk $\backslash ($ B $\backslash )$ and to fixed supports at $\backslash ($ A $\backslash )$ and $\backslash ($ C $\backslash ).$ Take $\backslash ($ T$=1\mathrm{.}8\backslash$mathrm$\{$kN$\}\backslash$cdot $\backslash$mathrm$\{$m$\}\backslash ).$

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part.

For the loading shown, determine the reaction at each support.

The reaction at support $\backslash ($ A $\backslash )$ is

N$-$m$.$

The reaction at support $\backslash ($ C $\backslash )$ is

N$.$m$.$
