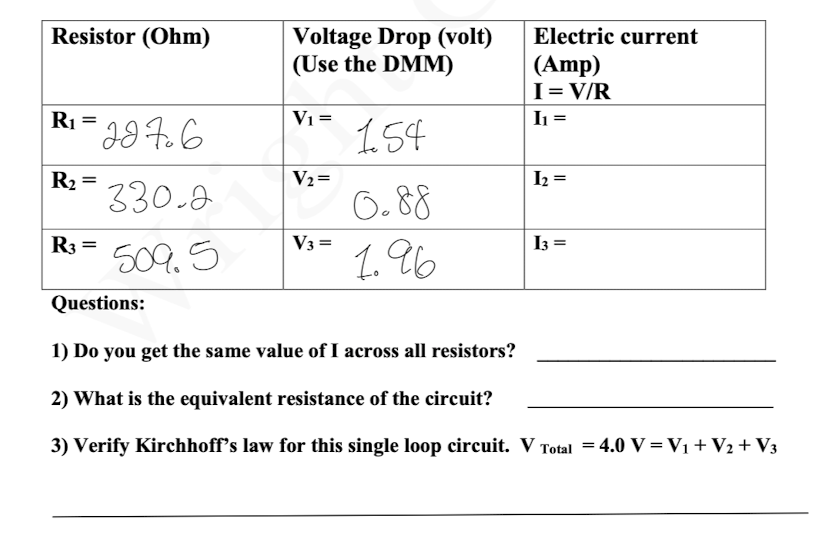

Question: Resistor (Ohm) Voltage Drop (volt) Electric current (Use the DMM) (Amp) I = V/R R1= 28 7. 6 VI= I1 = 1 54 R2 =

Resistor (Ohm) Voltage Drop (volt) Electric current (Use the DMM) (Amp) I = V/R R1= 28 7. 6 VI= I1 = 1 54 R2 = V2 = 12 = 330.2 6. 88 R3 = 509. 5 V3 = 1. 96 13 = Questions: 1) Do you get the same value of I across all resistors? 2) What is the equivalent resistance of the circuit? 3) Verify Kirchhoff's law for this single loop circuit. V Total = 4.0 V = V1 + V2 + V3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mathematics Questions!

Please help me fill in the chart for Part 1: Question #5 and #6. As well as Part2: Questions #1-5. Data sheet will be given, as well as procedures on pages 59-63. Thank you! Experiment 4: Resistance...

I need help with this labs data table R1-9,R2-35,R3-98 battery 1-33.8 battery 2-32.5 That all I have 3.5. Parallel connect the voltage sensor across resistor Ry (across $2 and $6), the sensor will...

I need help with my lab's data table R1-9.8, R2-30.7, R3-99.03 V1-33.4 V2-32.5 Lab-10A (LK) Kirchhoff's Rules Objective 1. Learn to build up a complicated circuit by using two DC power supplies and...

1: A defibrillator sends a 7.5 A current through the chest of a patient by applying a 12000 V voltage as in the figure. What is the resistance of the path in k? 2: During open-heart surgery, a...

ANSWER ALL THESE QUESTIONS, USE THE PHYSICS REFERENCE TABLE FROM GOOGLE IF NEEDED. SHOW ALL WORK NEEDED TO ANSWER THE QUESTIONS Enter D G Name : Zixiang Lin Pr. Roster #: CO Take Home 1. Base your...

Answer ALL these questions, Use the physics reference table from google if needed. Please explain and show work behind answers as much as possible. Enter D G Name : Zixiang Lin Pr. Roster #: CO Take...

Create a lab report for Ohm's Law. I will provide the material and instructions: Ohm's Law Ohm's law states that if a conductor is kept at a constant temperature, the current (?) flowing through it,...

Build and understand the principles of a simple electric circuit*Verify Ohm's law for a known resistorLink:https://phet.colorado.edu/en/simulation/circuit-construction-kit-dc-virtual-labPart I: Ohm's...

Please complete all the graphs and questions in this assignment. Use the pictures below to help. Table 1: Experimental Data: Resistors in Series Battery V1 Voltage 11 V2 Voltage 12 V3 Voltage I; V123...

Resistors in Series and Parallel Introduction In a previous experiment you have experimentally veried Ohm's law (V=IR). Now we will use Ohm's law to study electrical circuits. The components of...
