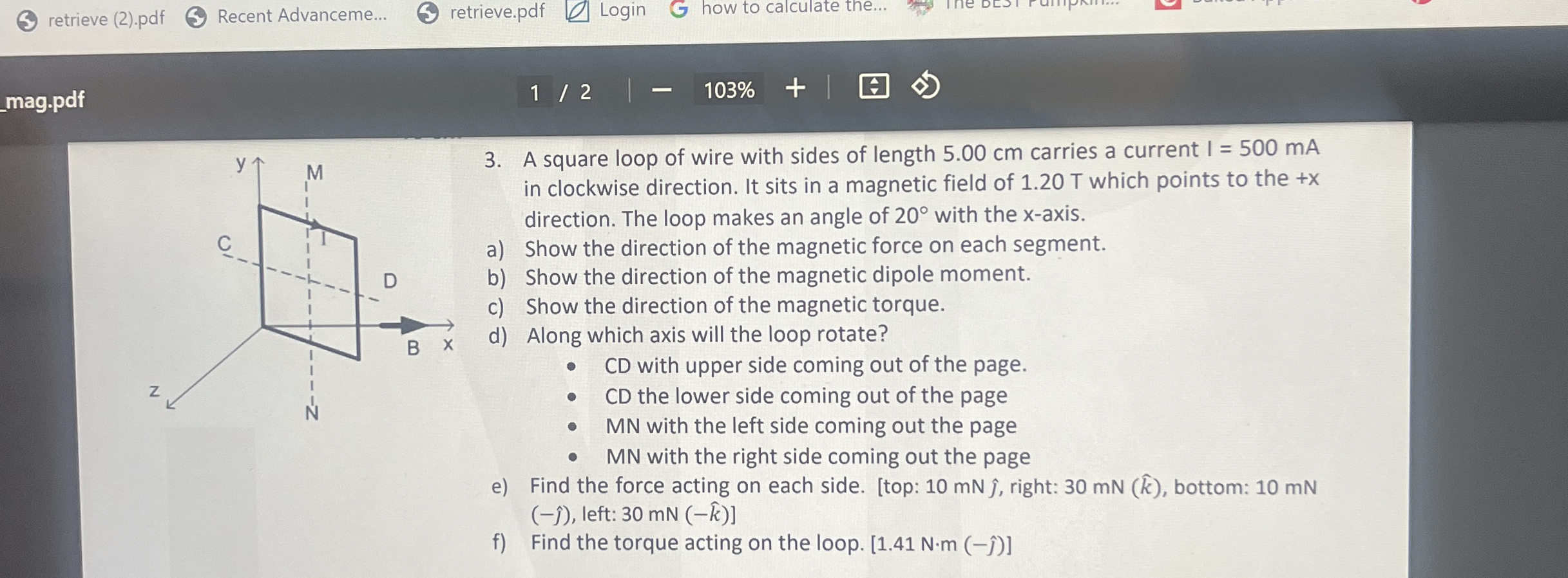

$3.$ A square loop of wire with sides of length $5\mathrm{.}00$ cm carries a current $I=500mA$ in clockwise direction. It sits in a magnetic field of $1\mathrm{.}20$ Twhich points to the $+x$ direction. The loop makes an angle of $20$ with the $x-$axis.

a$)$ Show the direction of the magnetic force on each segment.

b$)$ Show the direction of the magnetic dipole moment.

c$)$ Show the direction of the magnetic torque.

d$)$ Along which axis will the loop rotate?

CD with upper side coming out of the page.

CD the lower side coming out of the page

MN with the left side coming out the page

MN with the right side coming out the page

e$)$ Find the force acting on each side. $[$top: $10$mNhat$(),$ right: $30mN(hat(k)),$ bottom: $10$ mN $(-$hat$()),$ left: $30mN(-$widehat$(k))]$

f$)$ Find the torque acting on the loop. $[1\mathrm{.}41$ N $*m(-$hat$())$
