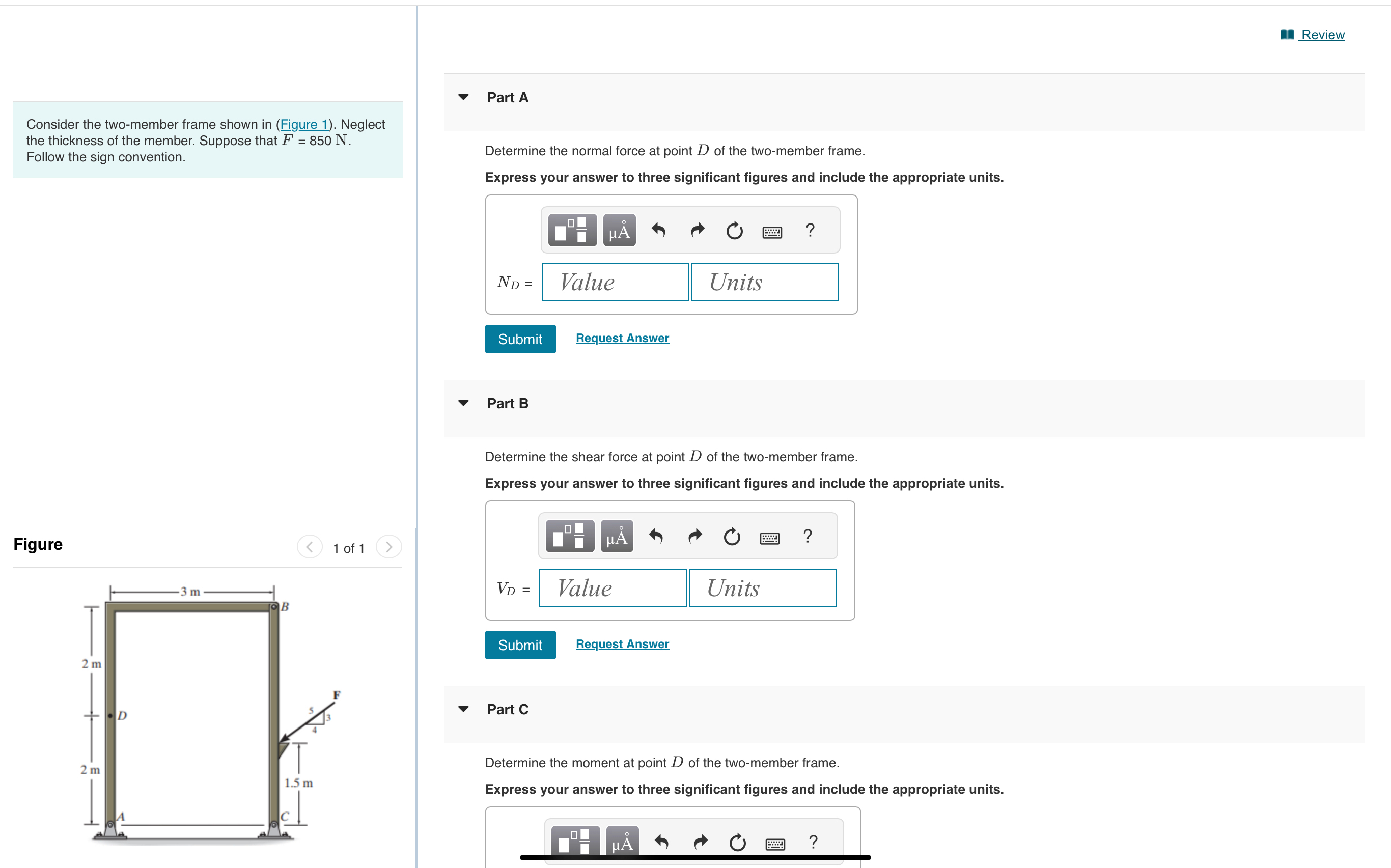

Consider the two$-$member frame shown in $($Figure $1).$ Neglect the thickness of the member. Suppose that $F=850N.$ Follow the sign convention.

Figure

$1$ of $1$

Determine the normal force at point $D$ of the two$-$member frame.

Express your answer to three significant figures and include the appropriate units.

$N_D=$

Request Answer

Part B

Determine the shear force at point $D$ of the two$-$member frame.

Express your answer to three significant figures and include the appropriate units.

Request Answer

Part C

Determine the moment at point $D$ of the two$-$member frame.

Express your answer to three significant figures and include the appropriate units.
