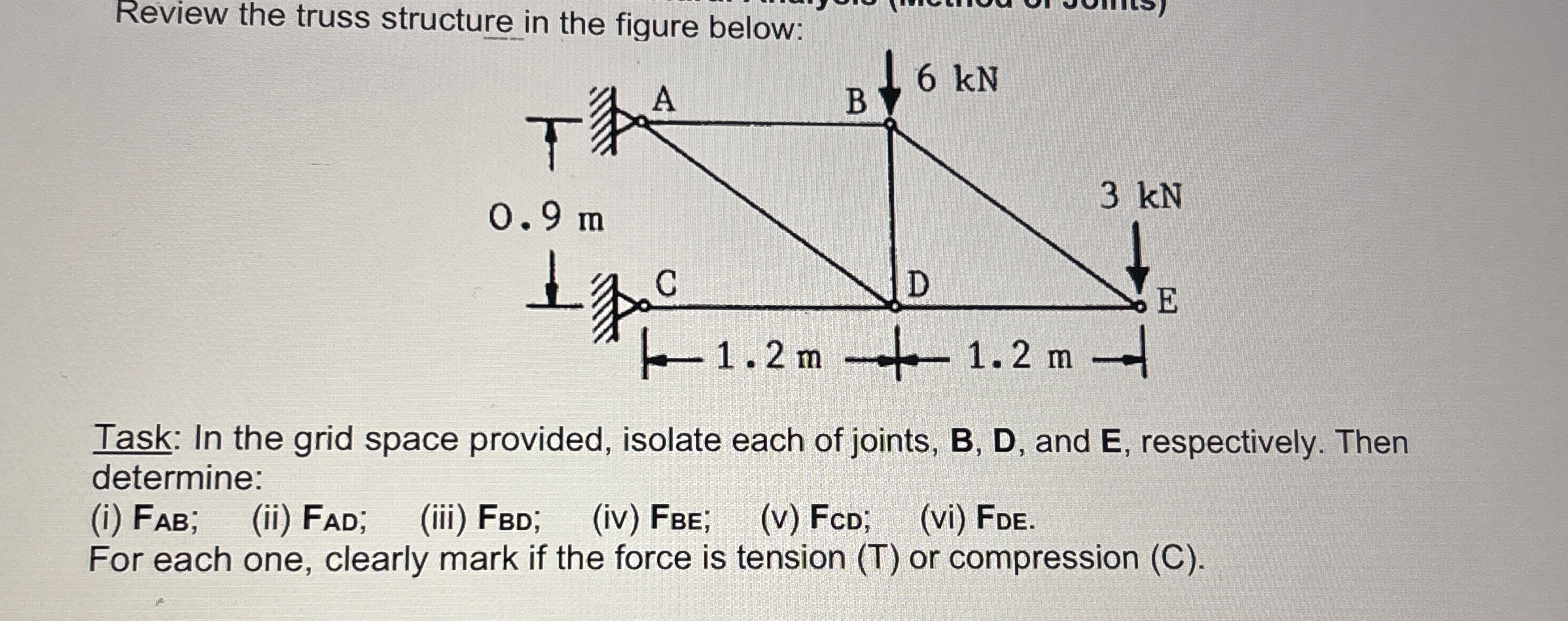

Review the truss structure in the figure below:

Task: In the grid space provided, isolate each of joints, B$,$ D$,$ and E$,$ respectively. Then determine:

$($i$)F_{AB}$;

$($ii$)F_{AD}$;

$($iii$)F_{Bd}$;

$($iv$)F_{be\text{;}}$

$($v$)$ FcD ;

$($vi$)$ Fde.

For each one, clearly mark if the force is tension $(T)$ or compression $($C$).$Review the truss structure in the figure below:

Task: In the grid space provided, isolate each of joints, B$,$ D$,$ and E$,$ respectively. Then determine:

$($i$)F_{AB}$;

$($ii$)F_{AD}$;

$($iii$)F_{Bd}$;

$($iv$)F_{be\text{;}}$

$($v$)$ FcD ;

$($vi$)$ Fde.

For each one, clearly mark if the force is tension $(T)$ or compression $($C$).$
