Question: Rework Problem # 1 0 - 3 8 Seen below BUT - Replace the strain gauge on the outer wall of the cylinder with a

Rework Problem #

10 - 38

Seen below BUT

-

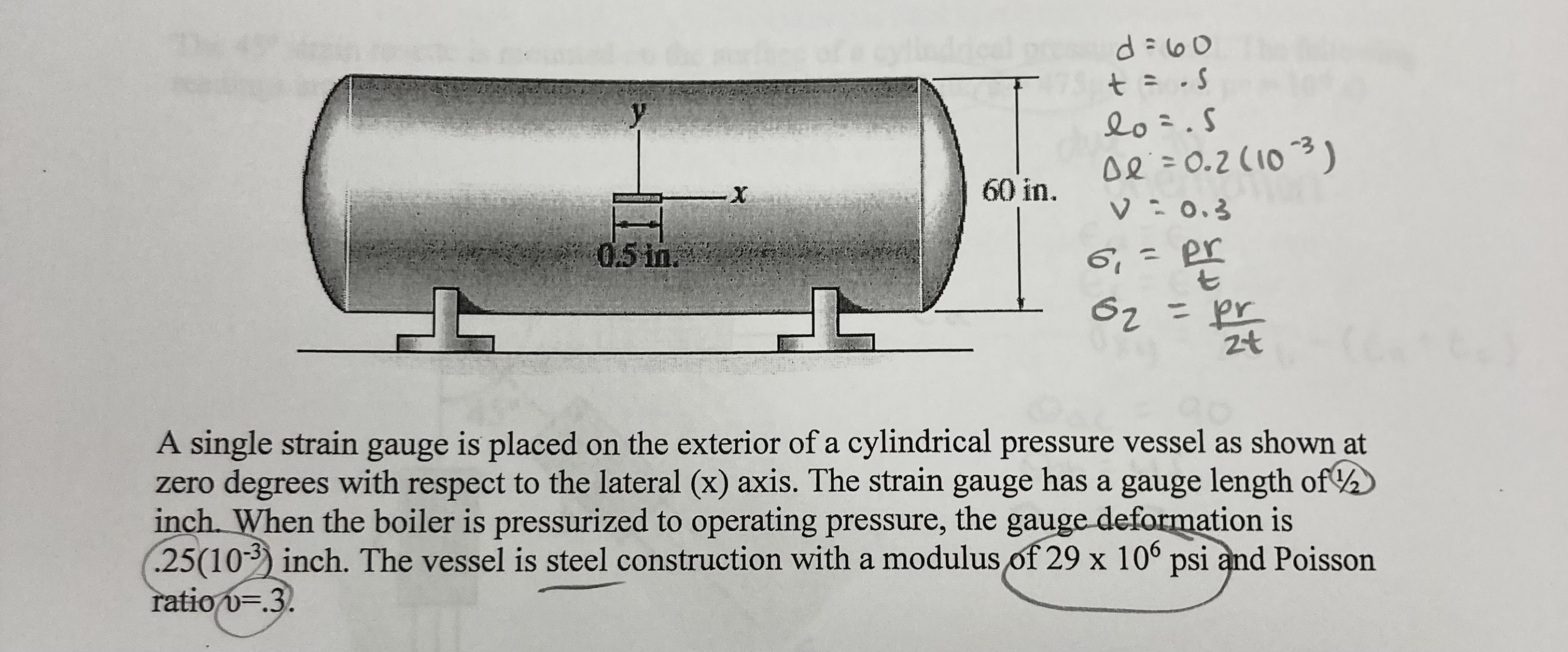

Replace the strain gauge on the outer wall of the cylinder with a Rosette Gauge. The pressure is lower such that the longitudinal gauge elongates by

. 12

inch.Also include out of plane calculation. i

.

Indicate the reading of each gauge.ii

.

Substitute and Justify a new material selection

-

show calculationsTil.Check that this geometry is elastic, and that plane stress assumption is appropriateiv.Determine the Factor of Safety and contrast MSS and DEV.Make an assumption regarding the operating temperature

-

indicate how this is accounted for in your calculations.

Rework Problem # 1 0 - 3 8 Seen below BUT -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image
