romberg function :

function [q,ea,iter]=romberg(f,a,b,es,maxIt)

% romberg: Romberg integration quadrature

% q = romberg(f,a,b,es,maxIt): Romberg Integration

%

% inputs:

% f = function to integrate

% a, b = integration limits

% es = desired relative error (default = .000001%)

% maxIt = maximum allowable iterations (default=50)

% outputs:

% q = integral estimate

% ea = approximate relative error

% iter = number of iterations

if nargin

if nargin

if nargin

I(1,1) = trap(f,a,b,1);

iter = 0;

while iter

iter = iter+1;

n = 2^iter;

I(iter+1,1) = trap(f,a,b,n);

for k = 2: iter+1

j = 2+iter-k;

I(j,k) = (4^(k-1)*I(j+1,k-1)-I(j,k-1)) /(4^(k-1)-1);

end

ea = abs((I(1,iter+1)-I(2,iter))/I(1,iter+1))*100;

if ea

end

q = I(1,iter+1);

end

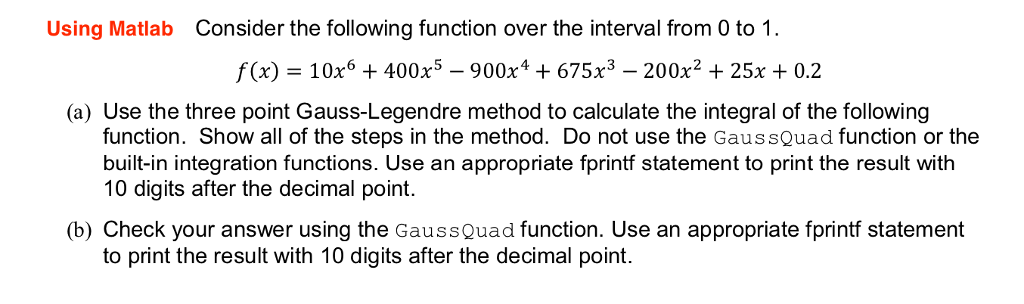

here is the fuction of problem 1 and the problem 1

function I = GaussQuad(f,a,b,n)

% GaussQuad: gauss quadrature integration

% I=GaussQuad(f,a,b,n)

% Input:

% f = name of function to be integrated

% a, b = integration limits

% n = number of quad points (default=8)

% Other Variables:

% xd = Gauss points to evaluate

% w = Weight factors

% x = True position of evaluation

% Output:

% I = Integral estimate

if nargin

if ~(b>a), error('Upper bound must be greater than lower'), end

if nargin

[xd,w]=GLTable(n);

I = 0;

c1 = (b+a)/2;

c2 = (b-a)/2;

for i = 1:n

x = c1 + c2 * xd(i);

I = I + f(x) * w(i);

end

I = I * c2;

end

function [x,w] = GLTable(n)

% GLTable Nodes and weights for Gauss-Legendre quadrature of order n

%

% Synopsis: [x,w] = GLTable(n)

%

% Input: n = number of nodes in quadrature rule, maximum: n = 8

%

% Output: x = vector of nodes

% w = vector of weights

% Numerical values from "Handbook of Mathematical Functions",

% Abramowitz and Stegun, eds., 1965 Dover (reprint), Table 25.4, p. 916

nn = fix(n); % Make sure number of nodes is an integer

x = zeros(nn,1); w = x; % Preallocate x and w vectors

switch nn

case 1

x = 0; w = 2;

case 2

x(1) = -1/sqrt(3); x(2) = -x(1);

w(1) = 1; w(2) = w(1);

case 3

x(1) = -sqrt(3/5); x(2) = 0; x(3) = -x(1);

w(1) = 5/9; w(2) = 8/9; w(3) = w(1);

case 4

x(1) = -0.861136311594053; x(4) = -x(1);

x(2) = -0.339981043584856; x(3) = -x(2);

w(1) = 0.347854845137454; w(4) = w(1);

w(2) = 0.652145154862546; w(3) = w(2);

case 5

x(1) = -0.906179845938664; x(5) = -x(1);

x(2) = -0.538469310105683; x(4) = -x(2);

x(3) = 0;

w(1) = 0.236926885056189; w(5) = w(1);

w(2) = 0.478628670499366; w(4) = w(2);

w(3) = 0.568888888888889;

case 6

x(1) = -0.932469514203152; x(6) = -x(1);

x(2) = -0.661209386466265; x(5) = -x(2);

x(3) = -0.238619186083197; x(4) = -x(3);

w(1) = 0.171324492379170; w(6) = w(1);

w(2) = 0.360761573048139; w(5) = w(2);

w(3) = 0.467913934572691; w(4) = w(3);

case 7

x(1) = -0.949107912342759; x(7) = -x(1);

x(2) = -0.741531185599394; x(6) = -x(2);

x(3) = -0.405845151377397; x(5) = -x(3);

x(4) = 0;

w(1) = 0.129484966168870; w(7) = w(1);

w(2) = 0.279705391489277; w(6) = w(2);

w(3) = 0.381830050505119; w(5) = w(3);

w(4) = 0.417959183673469;

case 8

x(1) = -0.960289856497536; x(8) = -x(1);

x(2) = -0.796666477413627; x(7) = -x(2);

x(3) = -0.525532409916329; x(6) = -x(3);

x(4) = -0.183434642495650; x(5) = -x(4);

w(1) = 0.101228536290376; w(8) = w(1);

w(2) = 0.222381034453374; w(7) = w(2);

w(3) = 0.313706645877887; w(6) = w(3);

w(4) = 0.362683783378362; w(5) = w(4);

otherwise

error(sprintf('Gauss quadrature with %d nodes not supported',nn));

end

end

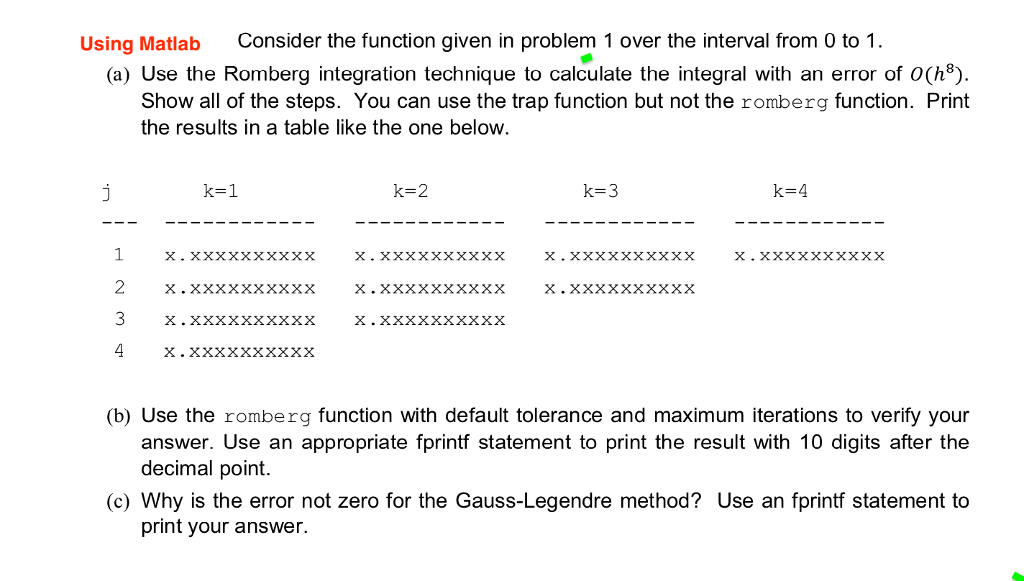

oConsider the function given in problem 1 over the interval from 0 to 1 (a) Use the Romberg integration technique to calculate the integral with an error of o(h8) Using Matlab Show all of the steps. You can use the trap function but not the romberg function. Print the results in a table like the one below 4X. xxXXxXXXXx (b) Use the romberg function with default tolerance and maximum iterations to verify your answer. Use an appropriate fprintf statement to print the result with 10 digits after the decimal point. (c) Why is the error not zero for the Gauss-Legendre method? Use an fprintf statement to print your answer. oConsider the function given in problem 1 over the interval from 0 to 1 (a) Use the Romberg integration technique to calculate the integral with an error of o(h8) Using Matlab Show all of the steps. You can use the trap function but not the romberg function. Print the results in a table like the one below 4X. xxXXxXXXXx (b) Use the romberg function with default tolerance and maximum iterations to verify your answer. Use an appropriate fprintf statement to print the result with 10 digits after the decimal point. (c) Why is the error not zero for the Gauss-Legendre method? Use an fprintf statement to print your
