Question: ROUND OFF THE FINAL ANSWER TO 3 DECIMAL PLACES 3. A centrifugal pump with a 300 mm diameter suction pipe and a 250 mm diameter

ROUND OFF THE FINAL ANSWER TO 3 DECIMAL PLACES

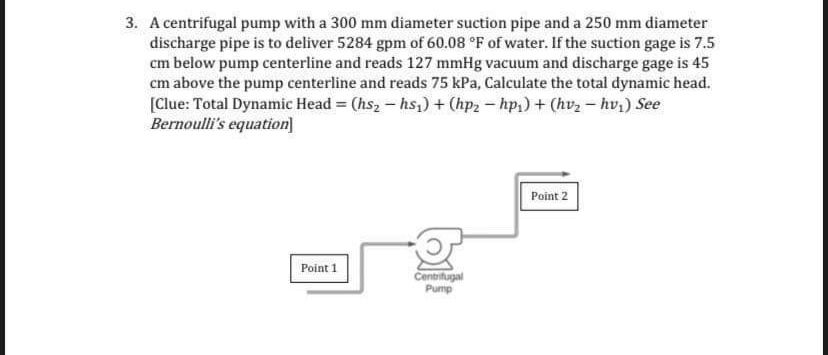

3. A centrifugal pump with a 300 mm diameter suction pipe and a 250 mm diameter discharge pipe is to deliver 5284 gpm of 60.08 F of water. If the suction gage is 7.5 cm below pump centerline and reads 127 mmlg vacuum and discharge gage is 45 cm above the pump centerline and reads 75 kPa, Calculate the total dynamic head. [Clue: Total Dynamic Head = (hs2 - hs,) + (hp2 - hp,) + (hvz - hv,) See Bernoulli's equation] Point 2 Point 1 Centrifugal Pump
