Routing Paths and Subnets

In this activity, for each pair of source and destination IP addresses, determine the correct source and destination networks and the shortest route between them.

Click each network in the right order. If the addresses are not represented by the networks available, click the $$Source or Destination Not Present$$ button instead.

Source and Destination

Source

$192\mathrm{.}168\mathrm{.}0\mathrm{.}73$

Destination

$10\mathrm{.}2\mathrm{.}100\mathrm{.}1$

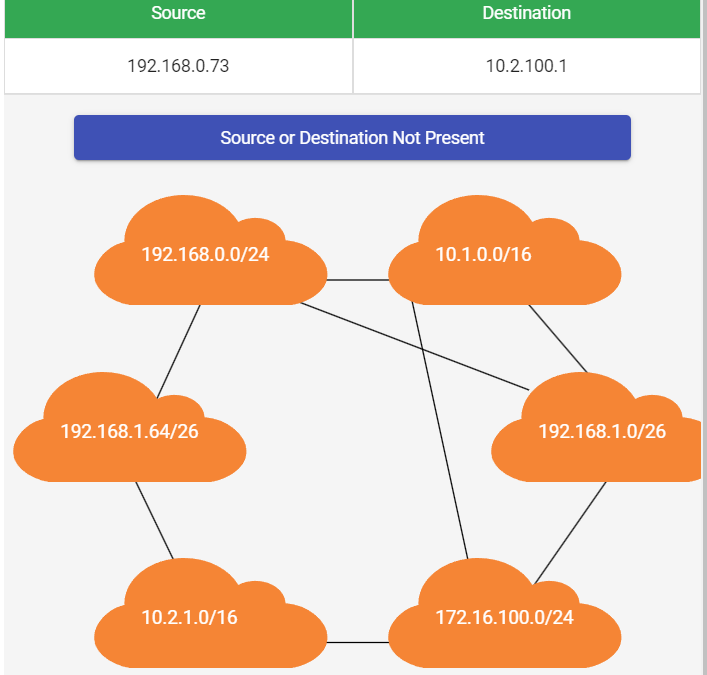

Interactive Network Layout

$192\mathrm{.}168\mathrm{.}0\mathrm{.}0/24$

$10\mathrm{.}1\mathrm{.}0\mathrm{.}0/16$

$192\mathrm{.}168\mathrm{.}1\mathrm{.}64/26$

$192\mathrm{.}168\mathrm{.}1\mathrm{.}0/26$

$10\mathrm{.}2\mathrm{.}1\mathrm{.}0/16$

$172\mathrm{.}16\mathrm{.}100\mathrm{.}0/24$Source

Destination

$192\mathrm{.}168\mathrm{.}0\mathrm{.}73$

$10\mathrm{.}2\mathrm{.}100\mathrm{.}1$

Source or Destination Not Present
