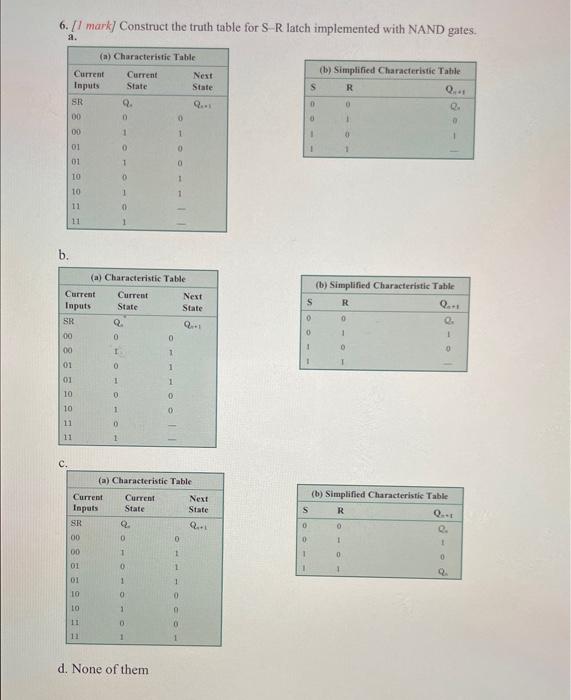

6. [I mark] Construct the truth table for SR latch implemented with NAND gates. a. \begin{tabular}{|ccc|} \hline \multicolumn{3}{|c|}{ (b) Simplified Claracteristic Tatle } \\ \hline S & R & Qi+1 \\ \hline 0 & 0 & Q \\ 0 & 1 & 0 \\ 1 & 0 & 1 \\ 1 & 1 & \\ \hline \end{tabular} b. \begin{tabular}{|lcc|} \hline \multicolumn{3}{|c|}{ (b) Simplified Characteristic Table } \\ \hline S & R & Q+1 \\ \hline 0 & 0 & Q \\ 0 & 1 & 1 \\ 1 & 0 & 0 \\ 1 & 1 & \\ \hline \end{tabular} c. \begin{tabular}{|lcc|} \hline \multicolumn{3}{|c|}{ (b) Simplified Characteristic Table } \\ \hline S & R & Q+1 \\ \hline 0 & 0 & 0. \\ 0 & 1 & 1 \\ 1 & 0 & 0 \\ 1 & 1 & Q. \\ \hline \end{tabular} d. None of them
