SCENARIO:

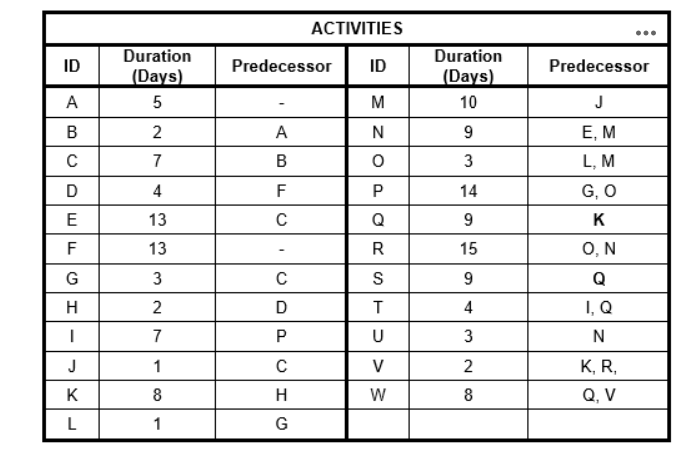

Project CE$,$ led by Project Manager ECE, is a complex undertaking comprising interconnected activities critical to its success. The PM oversees and coordinates tasks and resources, including the development of a project schedule. In your role as the assigned engineer, you will be responsible for creating the project schedule based on the following activities:

Instruction. Based on the precedence diagram you have developed, answer the following questions:

Note:

Given that the earliest start date for all independent activities is Day $01$

All answers in two$(2)$ digit format. For instance,$$the answer is $2$ days or Day $2-$ write $"02"$

For instances that the scenario$/$question is not possible, write NP

Questions:

When is the latest day Activity H can start?

When is the latest day Activity F can be finished?

When is the earliest day Activity D can start?

When is the earliest day Activity B can start?

When is the latest day Activity A can be finished?

How many day$($s$)$ is the Total Float of Activity G$?$

How many day$($s$)$ is the Total Float of Activity J$?$

How many day$($s$)$ is the Total Float of Activity D$?$

When is the latest day Activity U can start?

When is the earliest day Activity V can start?

When is the earliest day Activity K can start?

When is the latest day Activity Q can be finished?

When is the latest day Activity N start?

How many day$($s$)$ is the Total Float of Activity D$?$

How many day$($s$)$ is the Free Float of Activity Q$?$

Until what day can the completion of Activity D be delayed without delaying the project?

Until what day can the completion of Activity G be delayed without delaying the succeeding activity?

Until what day can the completion of Activity D be delayed without delaying the succeeding activity?

How many day$($s$)$ can Activity O be delayed without delaying the project?

How many day$($s$)$ can Activity V be delayed without delaying the succeeding activity?

What is the critical path of the project?

Determine the minimum duration $($in days$)$ of the project to be completed.
