Question: Seatwork # 1: Concurrent Force System 4/29/22 Problem: Find the magnitude and angle of inclination of R of concurrent force system shown. Figure: B= 15

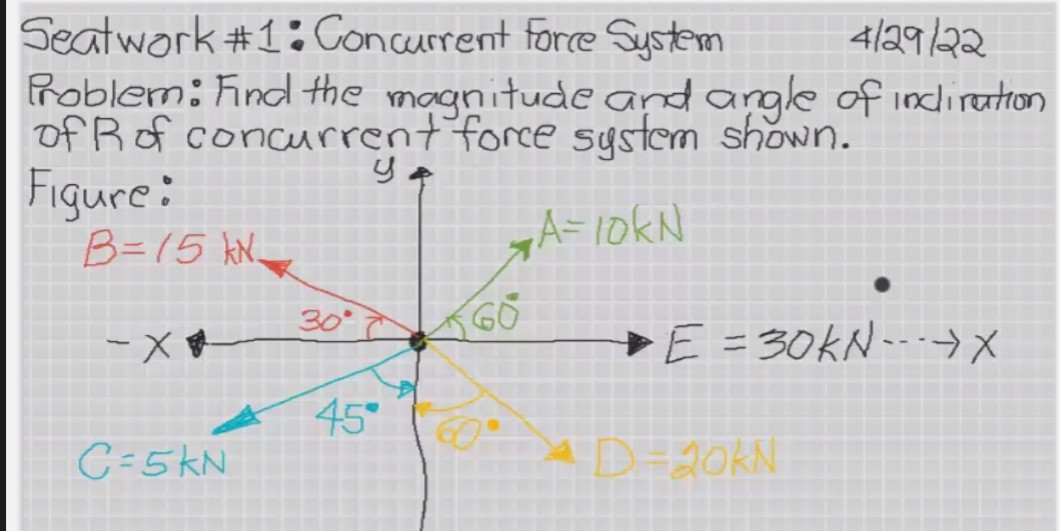

Seatwork # 1: Concurrent Force System 4/29/22 Problem: Find the magnitude and angle of inclination of R of concurrent force system shown. Figure: B= 15 KN A- 10KN 30 ' 60 - X E = 30KN --- --X 45 C= 5KN D-20 KN

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
