Question: Sec. 1 1 . 5 1 1 - 2 3 . Determine the moments at each joint and fixed support, then draw the moment diagram.

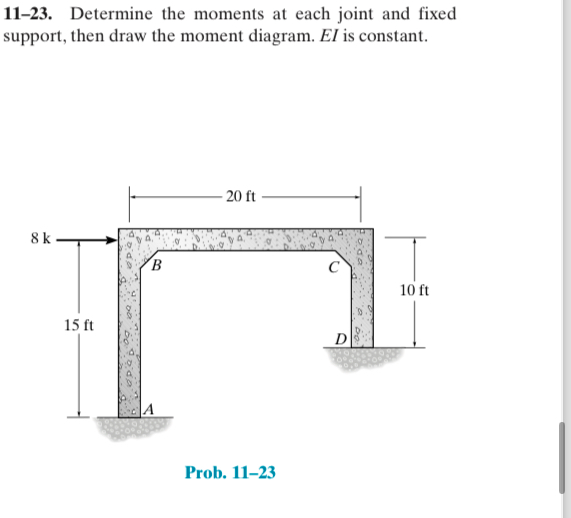

Sec. 11.511-23. Determine the moments at each joint and fixed
support, then draw the moment diagram. EI is constant.
Prob. 11-23
11-21. The wood frame is subjected to the load of 6kN.
Determine the moments at the fixed joints A,B, and D. The
joint at C is pinned. EI is constant.
Prob. 11-21
Sec. 1 1 . 5 1 1 - 2 3 . Determine the moments at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
