Question: Sec. 9 . 1 - 9 . 6 9 - 1 . Determine the horizontal displacement of joint C . Assume the members are pin

Sec. 9.1-9.6

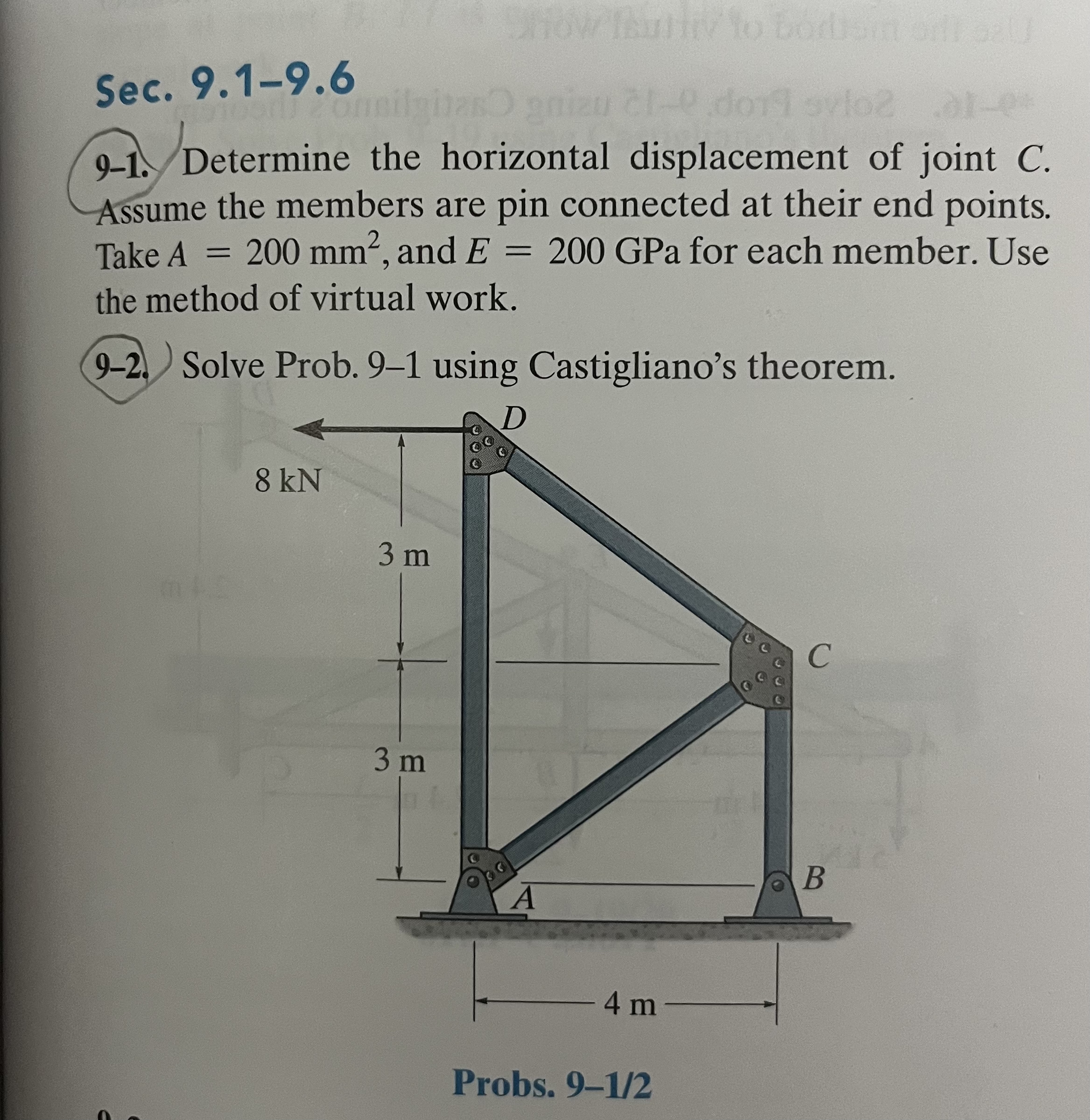

9-1. Determine the horizontal displacement of joint C. Assume the members are pin connected at their end points. Take A=200mm2, and E=200GPa for each member. Use the method of virtual work.
9-2. Solve Prob. 9-1 using Castigliano's theorem.
Probs. 9-1/2
Sec. 9 . 1 - 9 . 6 9 - 1 . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
