second pic is for refrence A-D please label clearly

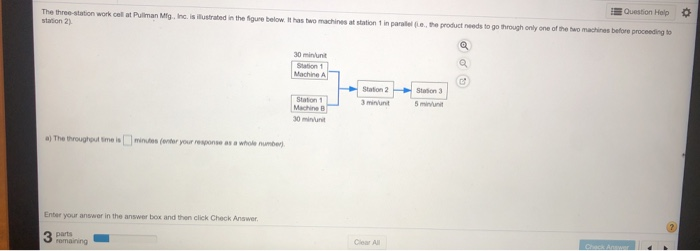

The three-station work collat Pullman Mig, Inc. is illustrated in the figure below. It has two machines et station in parallele, the products to go through only one of the two machines before proceeding to station 2) Question Help 30 minut Station 1 Machine A Station 2 3 minut Station 3 5 minut Station 1 Machine 30 minit .The throughout time is nie (enter your response as a whole number). Enter your answer in the answer box and then click Check Answer parts remaining Clear The three-station work cell illustrated in the figure below has a product that must go through one of the two machines at station 1 (they are parallel) before proce Capacity: 20 units/hr Station 1 Machine A Station 2 Station 1 Machine B Capacity: 20 units/hr Capacity 3 units/hr Station 3 Capacity: 12 units/hr a) The bottleneck time of the system is 20 minutes per unit (enter your response as a whole number). b) Station 2 is the bottleneck station. c) The throughput time is 28 minutes (enter your response as a whole number). d) If the firm operates 8 hours per day, 5 days per week, the weekly capacity of this work call is 120 units (enter your response as a whole number). Question is complete. Tap on the red indicators to see incorrect answers
