Question: Section 1 0 . 4 The PID Control Algorithm 1 0 . 8 In the following controller transfer function, identify the values of K P

Section 10.4 The PID Control Algorithm

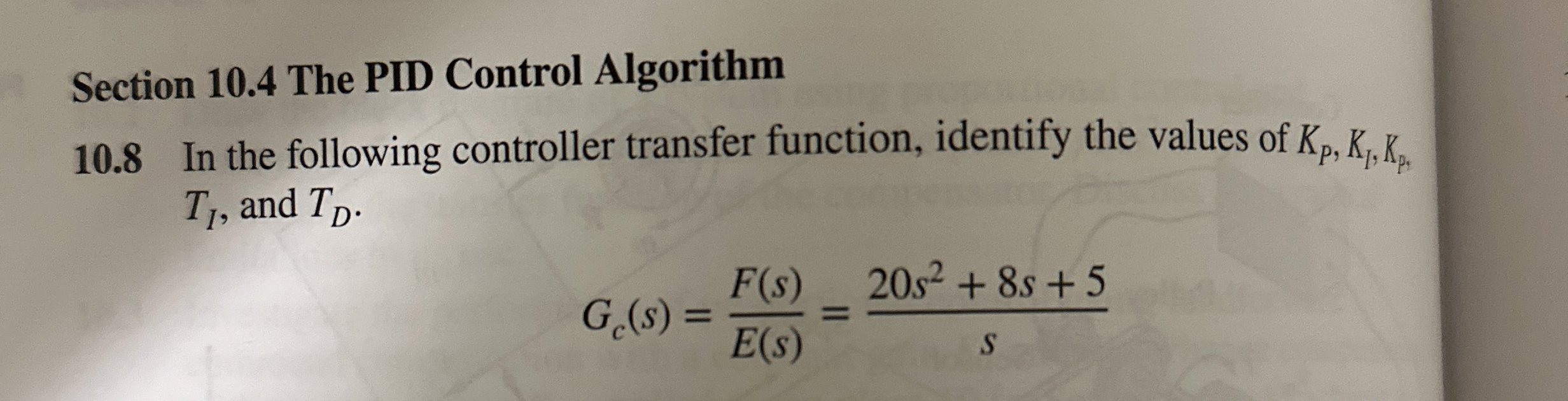

10.8 In the following controller transfer function, identify the values of KP,Kl,Kp,TI, and TD.
Gc(s)=F(s)E(s)=20s2+8s+5s
Section 1 0 . 4 The PID Control Algorithm 1 0 . 8

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
