Question: SECTION 1 9 - 4 Maximum Power Transfer Theorem 1 6 . For each circuit in Figure 1 9 - 5 6 , maximum power

SECTION 19-4 Maximum Power Transfer Theorem

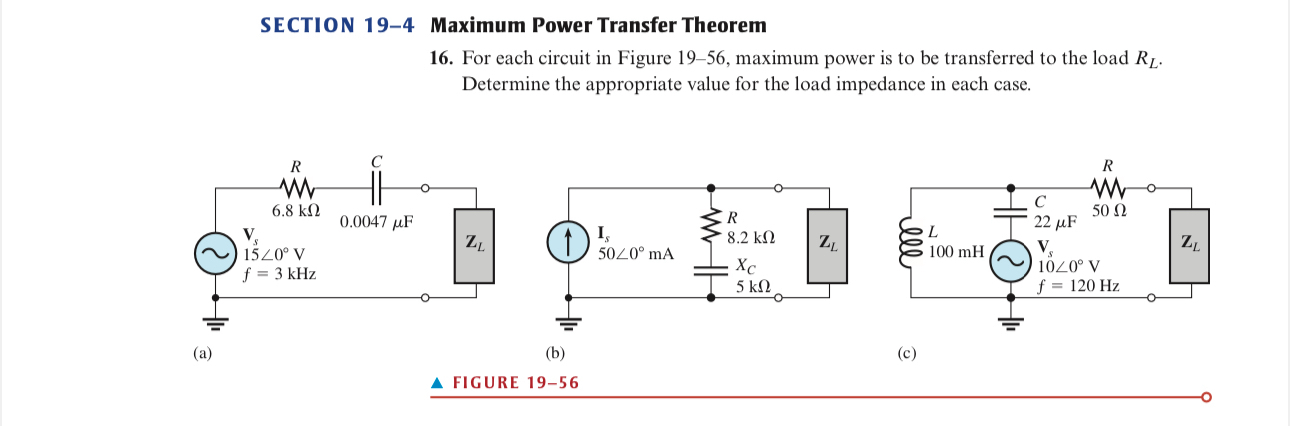

16. For each circuit in Figure 19-56, maximum power is to be transferred to the load RL. Determine the appropriate value for the load impedance in each case. Please solve c last expert missed it.
SECTION 1 9 - 4 Maximum Power Transfer Theorem 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
