Question: Section 2 ( 2 5 Points ) Exercise 2 . ( 1 2 points ) Determine the currents I _ ( T ) , I

Section 2(25 Points)

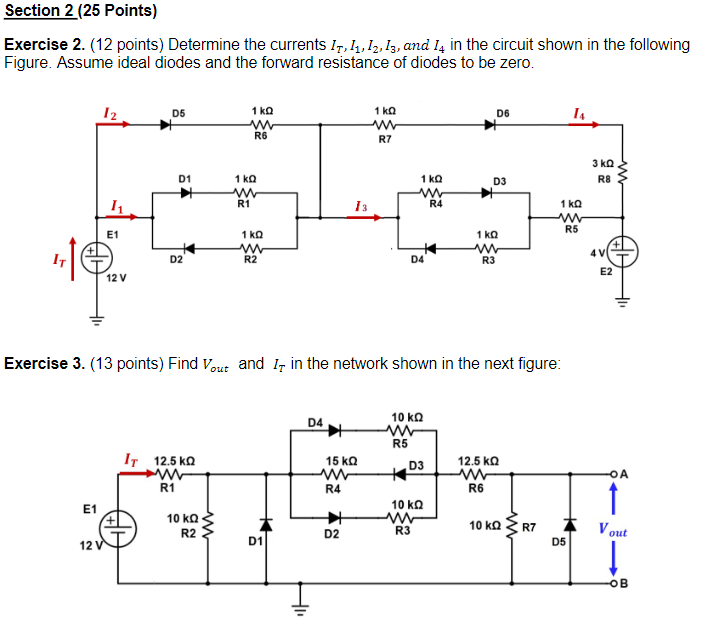

Exercise 2.(12 points) Determine the currents I_(T),I_(1),I_(2),I_(3), and I_(4) in the circuit shown in the following Figure. Assume ideal diodes and the forward resistance of diodes to be zero.
Exercise 3.(13 points) Find V_(out ) and I_(T) in the network shown in the next figure:
Section 2 ( 2 5 Points ) Exercise 2 . ( 1 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
