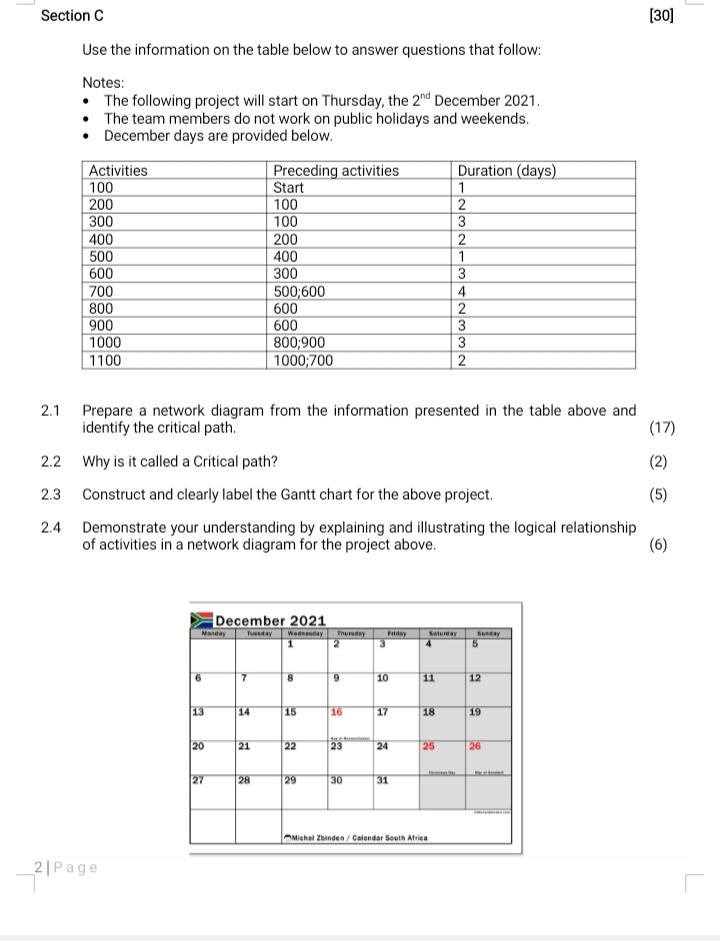

Section C [30] Use the information on the table below to answer questions that follow: Notes: The following project will start on Thursday, the 2nd December 2021. The team members do not work on public holidays and weekends. December days are provided below. Activities Preceding activities Duration (days) 100 Start 1 200 100 2 300 100 3 400 200 2 500 400 600 300 700 500;600 800 600 900 600 1000 800,900 3 1100 1000,700 2 NWWNW-NO (17) (2) 2.1 Prepare a network diagram from the information presented in the table above and identify the critical path. 2.2 Why is it called a Critical path? 2.3 Construct and clearly label the Gantt chart for the above project. 24 Demonstrate your understanding by explaining and illustrating the logical relationship of activities in a network diagram for the project above. (5) (6) December 2021 TY Weny murday Sales 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Michel Zbinden / Calondar South Africa 2 Page 2
