Question: section in the proportion shown. a ) Determine its required dimension b if the allowable bending stress is a l l o w = 1

section in the proportion shown.

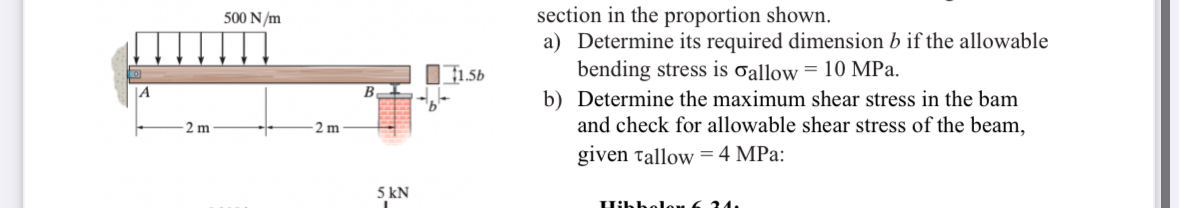

a) Determine its required dimension b if the allowable bending stress is allow=10MPa.
b) Determine the maximum shear stress in the bam and check for allowable shear stress of the beam, given allow =4MPa :
section in the proportion shown. a ) Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine its required dimension b if the allowable bending stress is \ sigma allow = 1 1 MPa

Q:

STRENGTH AND STATS PLS HELP Question-1 a) Write the flexure formula and general shear formula. b) A timber beam AE of span 32ft is to support the two concentrated loads and a uniformly distributed...

Q:

Question-1 a) Write the flexure formula and general shear formula. (20) b) A timber beam AE of span 32ft is to support the two concentrated loads and a uniformly distributed load shown. Knowing that...

Q:

The wood beam has a rectangular cross section in the proportion shown. Determine its required dimension b if the allowable bending stress is allow = 10 MPa. |A 500 N/m -2 m 2 m B 1.56

Q:

There are three types of materials with the properties shown below: Material #1 oy = 400 MPa E = 70 GPa p = 2.7 ton/m Material #2 oy = 750 MPa E = 210 GPa p = 7.8 ton/m Material #3 oy = 920 MPa E =...

Q:

Question 1 (5 marks): The wooden T-beam shown is made from two 150 x 30 mm boards. If the allowable bending stress is Oallow = 9 MPa and allowable shear stress is Tallow = 1.2 MPa, determine if the...

Q:

A weight W = 20 kN falls through a height h = 1.0 mm onto the midpoint of a simple beam of length L = 3 m (see figure). The beam is made of wood with square cross section (dimension d on each side)...

Q:

Section 1A The composite beam shown in figure below consist of wood and steel plate. If the allowable bending stress for wood is 30 MPa and for steel is 100 MPa. Determine the bending moment for wood...

Q:

The composite beam is made of steel (A) bonded to brass (B) and has the cross section shown. If the allowable bending stress for the steel is (Ï allow ) st = 180 MPa, and for the brass (Ï...

Q:

The composite beam is made of 6061-T6 aluminum (A) and C83400 red brass (B). Determine the dimension h of the brass strip so that the neutral axis of the beam is located at the seam of the two...
