Question: Select the correct output for common cathode 7 segment display. Your answer: Number 8 in 7 Segment Display Number 0 in 7 Segment Display Number

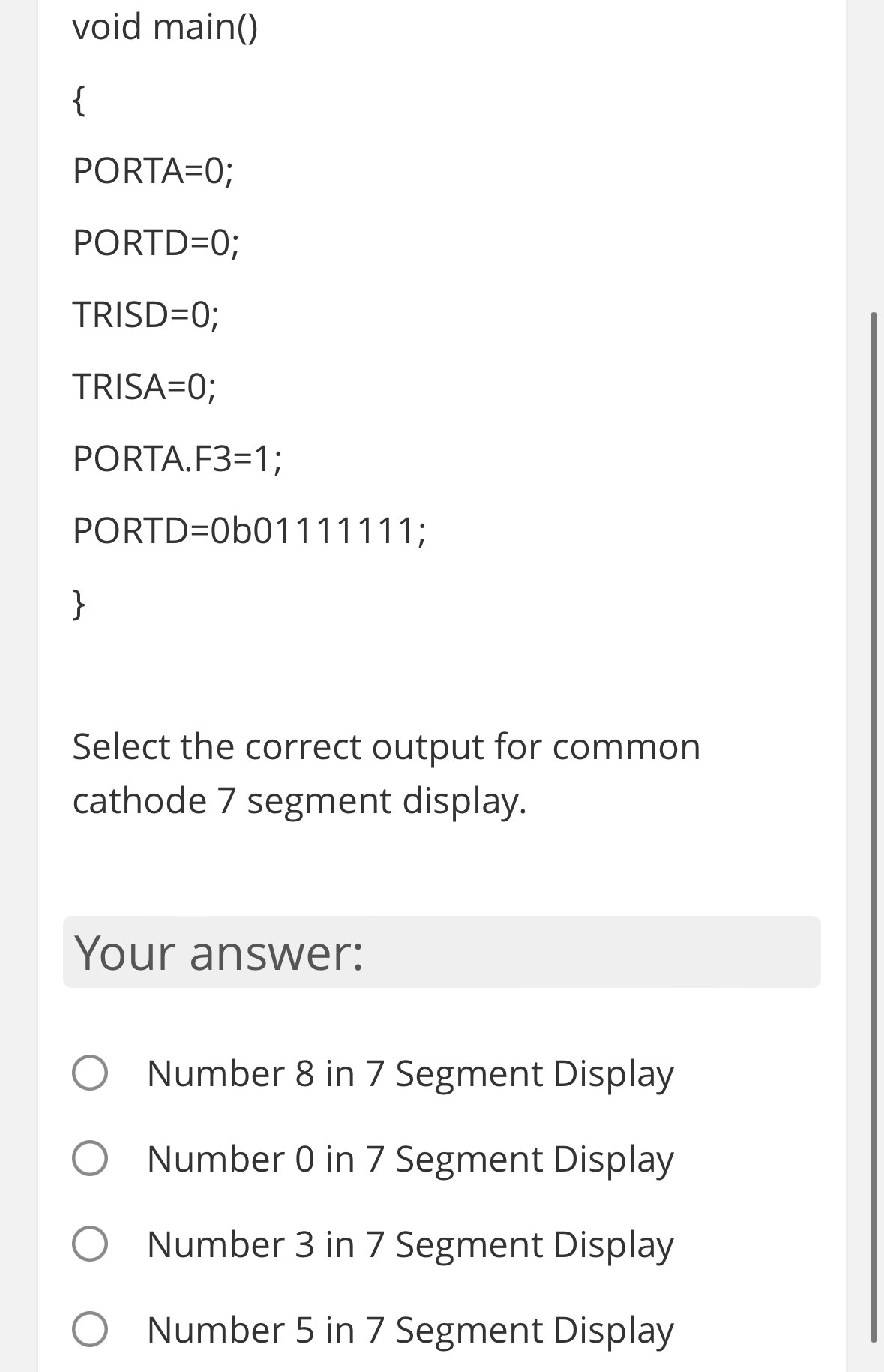

Select the correct output for common cathode 7 segment display.
Your answer:
Number 8 in 7 Segment Display
Number 0 in 7 Segment Display
Number 3 in 7 Segment Display
Number 5 in 7 Segment Display
Select the correct output for common cathode 7 segment display. Your

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
