Question: Select the lightest W 1 0 shape for column A B of the pinned - base unbraced - moment frame shown in the figure. Assume

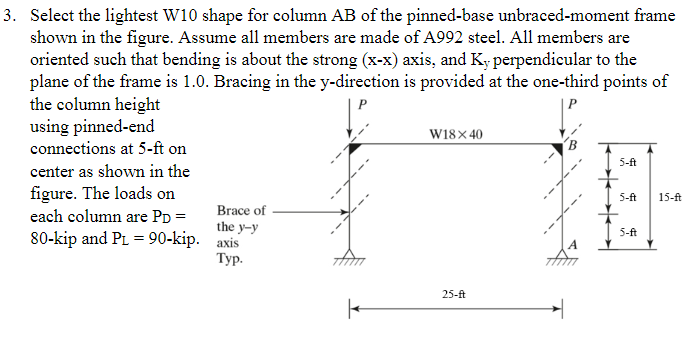

Select the lightest W10 shape for column AB of the pinned-base unbraced-moment frame
shown in the figure. Assume all members are made of A992 steel. All members are
oriented such that bending is about the strong (x-x) axis, and Ky perpendicular to the
plane of the frame is 1.0. Bracing in the y-direction is provided at the one-third points of
the column height
using pinned-end
connections at 5-ft on
center as shown in the
figure. The loads on
each column are PDD=
80-kip and PL=90-kip.
Select the lightest W 1 0 shape for column A B of
