Question: Sensor A reads 1 . 5 kPa ( gage ) . All fluids are at 2 0 , C . Determine the elevations Z in

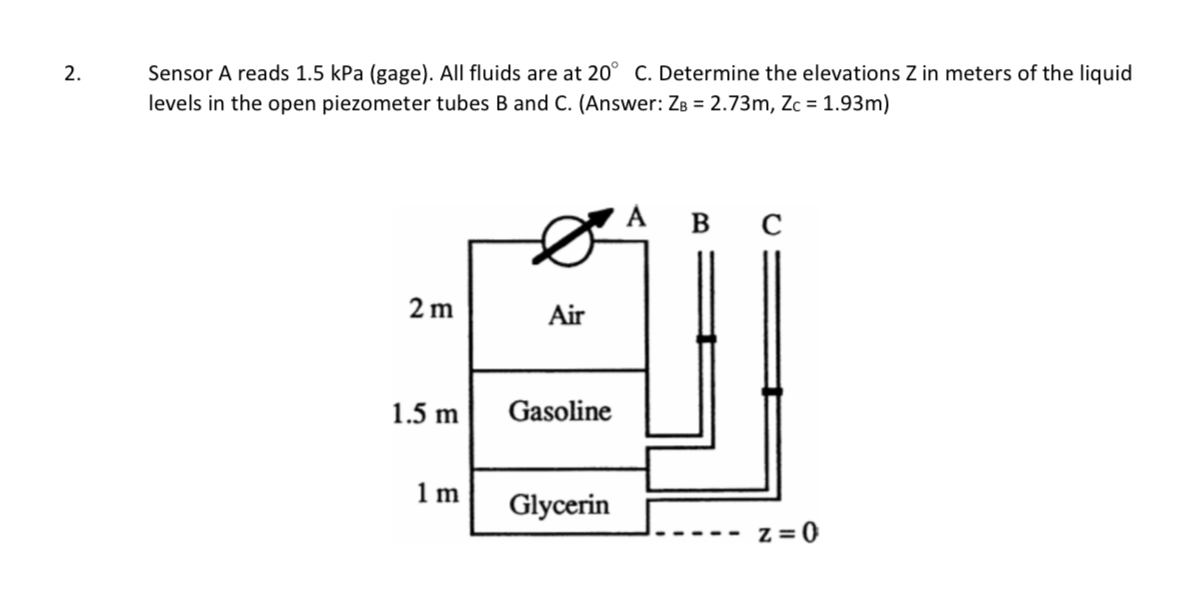

Sensor A reads 1.5kPa (gage). All fluids are at 20,C. Determine the elevations Z in meters of the liquid levels in the open piezometer tubes B and C.(Answer: ZB=2.73m,Zc=1.93m)
Sensor A reads 1 . 5 kPa ( gage ) . All fluids

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

In Fig P2.11, sensor A reads 1.5 kPa (gage). All fluids are at 20°C. Determine the elevations Z in meters of the liquid levels in the open piezometer tubes B and C. ABC 2 m Air 1.5 m Gasoline 1m...

Q:

1. (2.11) In Figure 1, pressure gage A reads 1.5 kPa (gage). The fluids are at 20 C. Determine the elevations z, in meters, of the liquid levels in the open piezometer tubes B and C. B C 2 m Air 1.5...

Q:

Subject: Fluid Mechanics Seatwork # 3-Fluid Mechanics Solve the following problem completely. 1. A pressure gage 6m above the bottom of the tank containing a liquid reads 90kPa. Another gage height...

Q:

ANSWER ALL QUESTIONS. 3-68 A 0.3-m3 rigid vessel initially contains saturated liquid-vapor mixture of water at 150C. The water is now heated until it reaches the critical state. Determine the mass of...

Q:

8 : 0 4 6 . Pressure gage A reads 1 . 5 kPa ( gage ) . Determine the elevations z , in meters, of the liquid levels in the open piezometers B and C . The Density of Gasoline is 6 8 0 k g m 3 , and...

Q:

Q 2 . 6 ( corrected Q . statement ) In figure pressure gage A reads 1 . 5 kPa. The fluids are at 2 0 C . Determine the elevations z , in meters, of the liquid levels in the open piezometer tubes B...

Q:

Part B 1. [20 points) The fluids in the tank (Figure B1) are at 25C in which the densities of nitrogen, gasoline, and water are 1.132 kg/m', 737 kg/m' and 997 kg/m", respectively. If the pressure...

Q:

1. [20 points) The fluids in the tank (Figure Bl) are at 25C in which the densities of nitrogen, gasoline, and water are 1.132 kg/m, 737 kg/m2 and 997 kg/m?, respectively. If the pressure gage A...

Q:

Part B 1. [20 points/ The fluids in the tank (Figure BI) are at 25C in which the densities of nitrogen, gasoline, and water are 1.132 kg/m, 737 kg/m and 997 kg/m", respectively. If the pressure gage...

Q:

In the following figure, pressure gage A reads 1 . 5 kPa ( gage pressure ) . The fluids are at 2 0 C . Determine the elevation Z , in meters ( B , and C ) , of the liquid level in the open piezometer...
