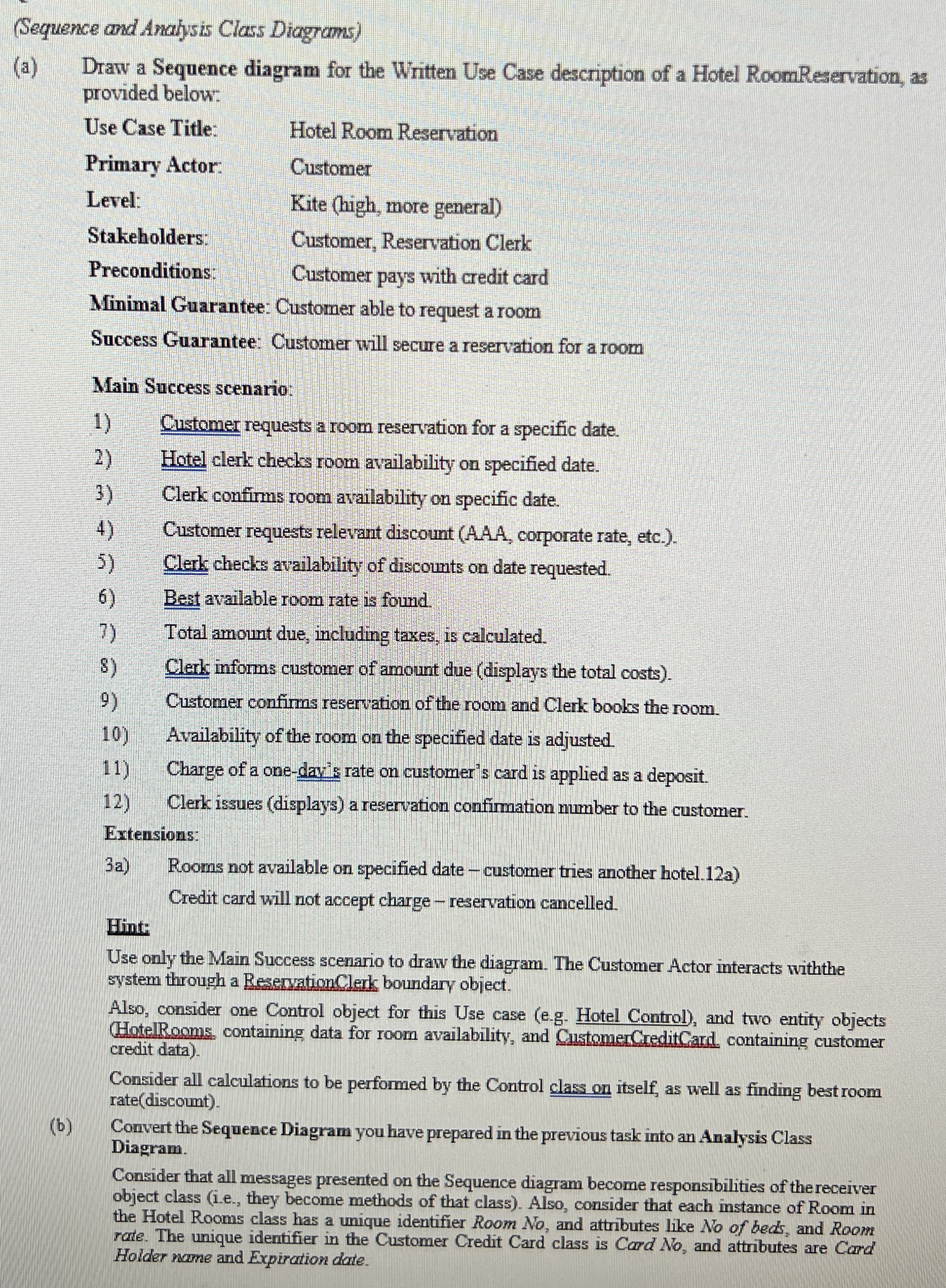

$($Sequence and Anafyis Class Diagrams$)$

$($a$)$ Draw a Sequence diagram for the Written Use Case description of a Hotel RoomReservation, as provided below:

Use Case Title:

Primary Actor:

Level:

Stakeholders:

Preconditions:

Hotel Room Reservation

Customer

Kite $($high$,$ more general$)$

Customer, Reservation Clerk

Customer pays with credit card

Minimal Guarantee: Customer able to request a room

Success Guarantee: Customer will secure a reservation for a room

Main Success scenario:

Customer requests a room reservation for a specific date.

Hotel clerk checks room availability on specified date.

Clerk confirms room availability on specific date.

Customer requests relevant discount $($AAA$,$ corporate rate, etc.$).$

Clerk checks availability of discounts on date requested.

Best available room rate is found.

Total amount due, including taxes, is calculated.

Clerk informs customer of amount due $($displays the total costs$).$

Customer confinms reservation of the room and Clerk books the room.

Availability of the room on the specified date is adjusted.

Charge of a one$-$day's rate on customer's card is applied as a deposit.

Clerk issues $($displays$)$ a reservation confirmation number to the customer.

Extensions:

$3$a$)$ Rooms not available on specified date $-$ customer tries another hotel$\mathrm{.}12$a$)$

Credit card will not accept charge $-$ reservation cancelled.

Hint:

Use only the Main Success scenario to draw the diagram. The Customer Actor interacts withthe system through a ReservationClerk boundary object.

Also, consider one Control object for this Use case $($e$.$g$.$ Hotel Control$),$ and two entity objects HotelRooms, containing data for room availability, and CustomerCreditCard, containing customer credit data$).$

Consider all calculations to be performed by the Control class on itself, as well as finding bestroom rate$($discount$).$

$($b$)$ Convert the Sequence Diagram you have prepared in the previous task into an Analysis Class Diagram.
