Question: Sequence detector: The machine generates z = 1 when it detects the sequence 00110101. Once the sequence is detected, the circuit looks for a new

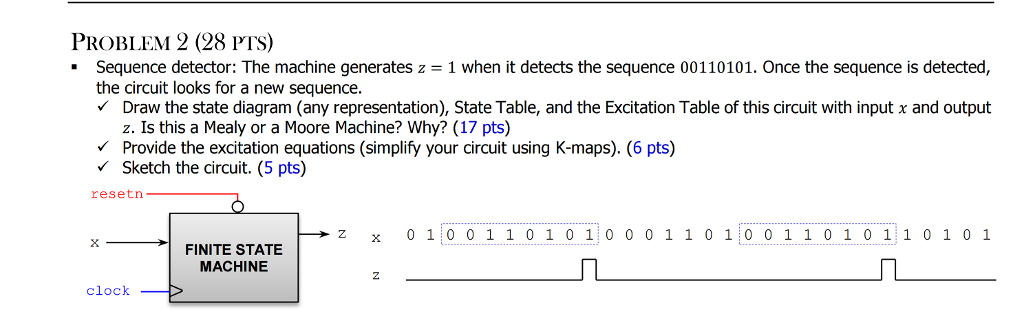

image text in transcribed

Sequence detector: The machine generates z = 1 when it detects the sequence 00110101. Once the sequence is detected, the circuit looks for a new sequence. Draw the state diagram (any representation), State Table, and the Excitation Table of this circuit with input x and output z. Is this a Mealy or a Moore Machine? Why? Provide the excitation equations (simplify your circuit using K-maps). Sketch the circuit

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
