Question: Set 8 Problem 2 Capacitor Network II C1 C2 C 3 26.0 V Capacitors C1 and C2 are connected in series and this combination is

Set 8 Problem 2 Capacitor Network II C1 C2 C 3 26.0 V Capacitors C1 and C2 are connected in series and this

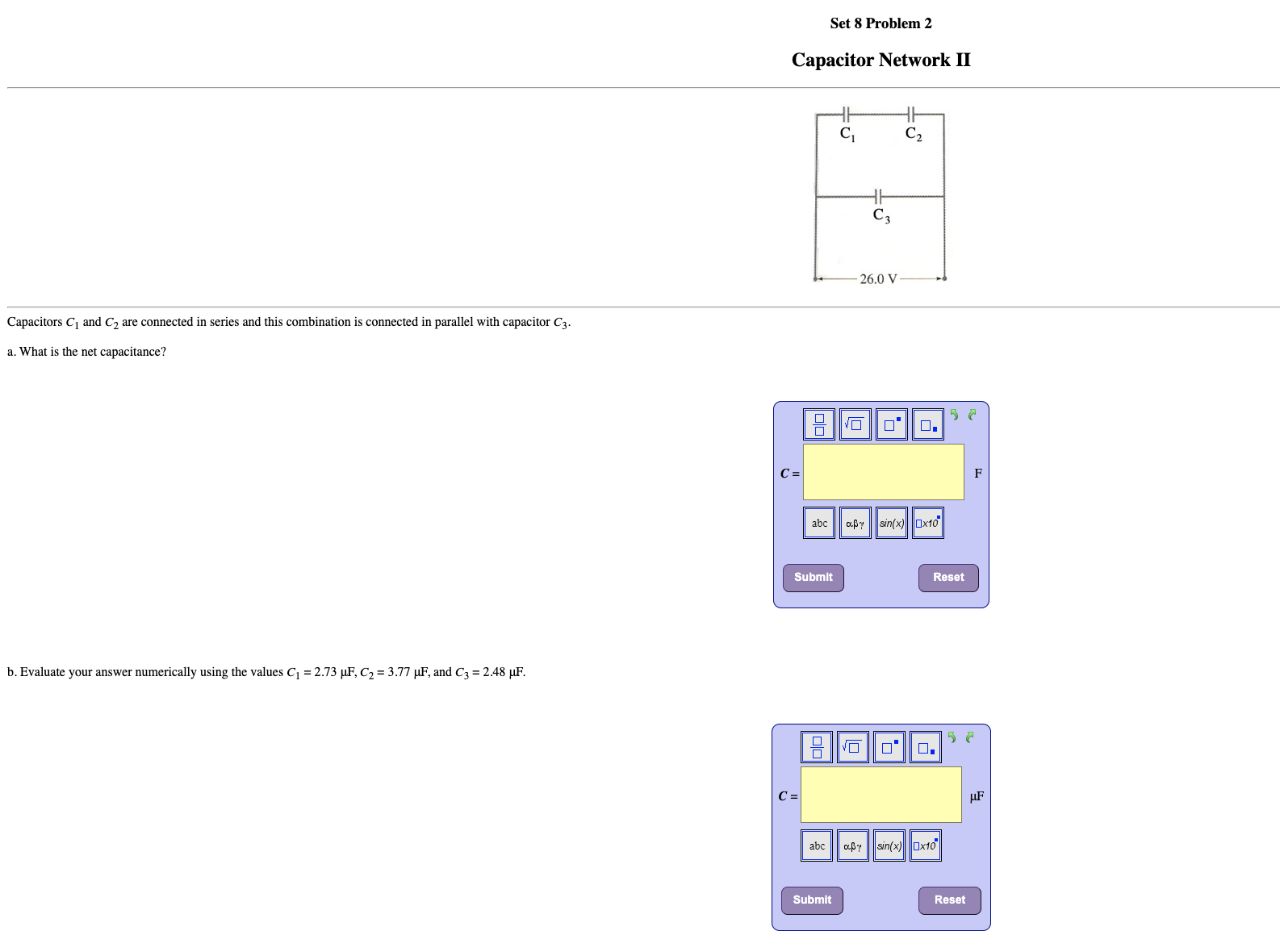

combination is connected in parallel with capacitor C3. a. What is the

net capacitance? O C = R abc sin(x 1x10" Submit Reset b.

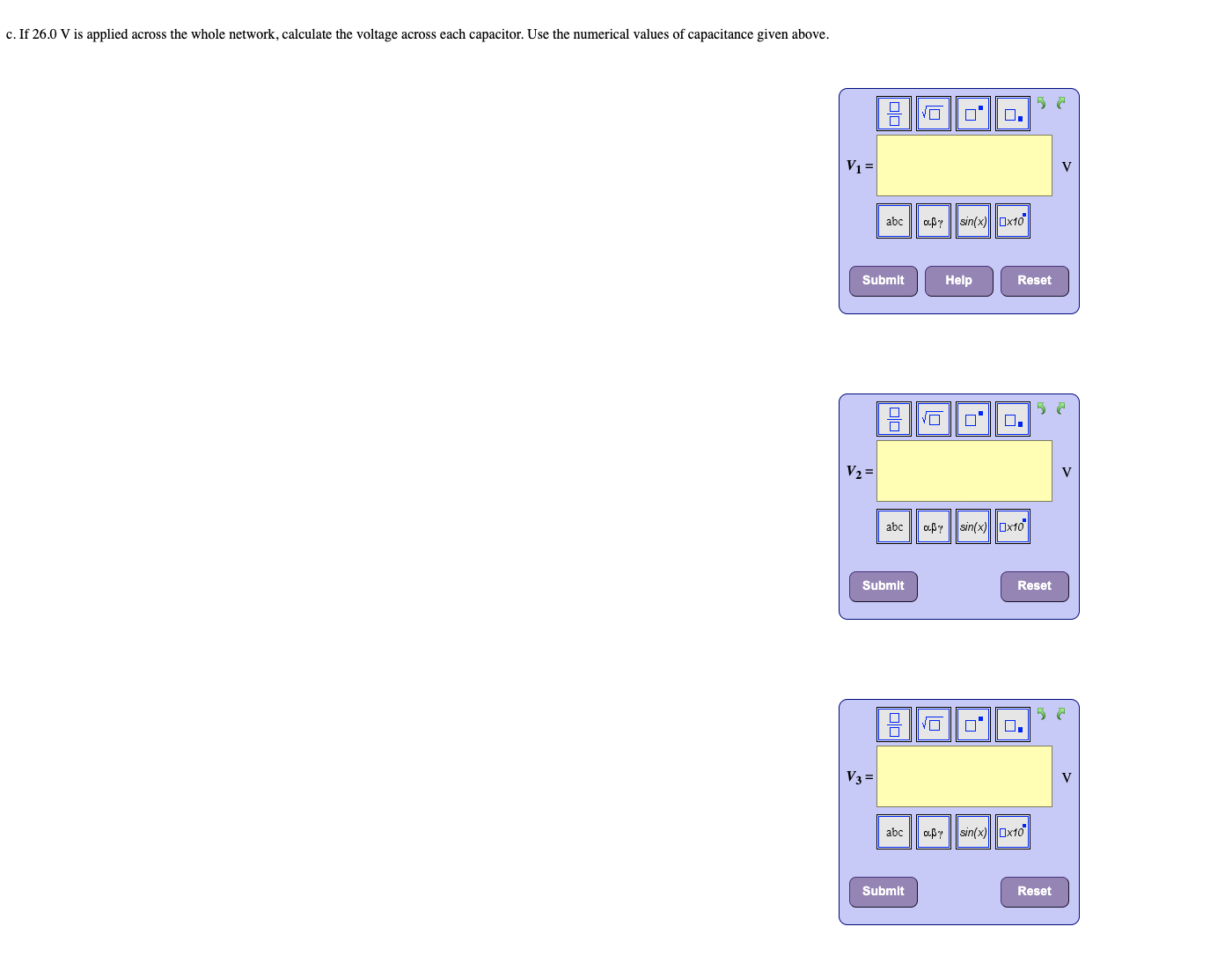

Set 8 Problem 2 Capacitor Network II C1 C2 C 3 26.0 V Capacitors C1 and C2 are connected in series and this combination is connected in parallel with capacitor C3. a. What is the net capacitance? O C = R abc sin(x 1x10" Submit Reset b. Evaluate your answer numerically using the values C1 = 2.73 UF, C2 = 3.77 UF, and C3 = 2.48 JF. 5 7 D. C = abc sin(x) Ox10 Submit Resetc. If 2610 V is applied across the whole network, calculate the voltage acmss each capacitor. Use the numerical values of capacitance given above

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
