Set A

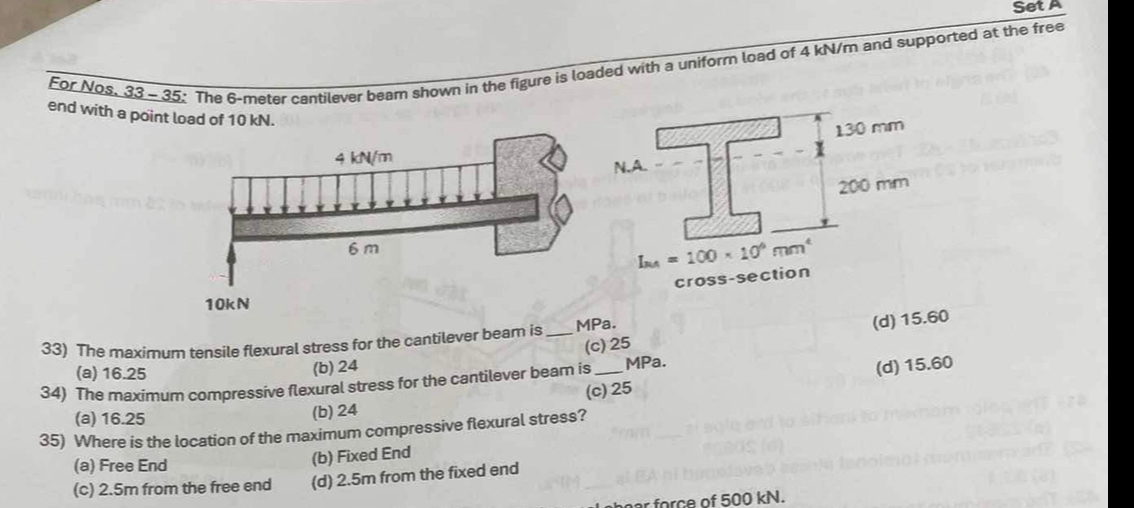

For Nos. $33-35$: The $6-$meter cantilever bearn shown in the figure is loaded with a uniform load of $4k\frac{N}{m}$ and supported at the free end with a point load of $10$ kN $.$

The maximum tensile flexural stress for the cantilever beam is $q,$ MPa.

$($d$)15\mathrm{.}60$

$($a$)16\mathrm{.}25$

$($b$)24$

$($c$)25$

The maximum compressive fexural stress for the cantilever beam is $q,$ MPa $.$

$($c$)25$

$($d$)15\mathrm{.}60$

$($a$)16\mathrm{.}25$

$($b$)24$

Where is the location of the maximum compressive flexural stress?

$($a$)$ Free End

$($b$)$ Fixed End

$($c$)2\mathrm{.}5$ m from the free end

$($d$)2\mathrm{.}5$ m from the fixed end
