Question: Set P 1 = 3 0 k N , P 2 = 2 0 k N . ( Figure 1 ) Figure Part A: Determine

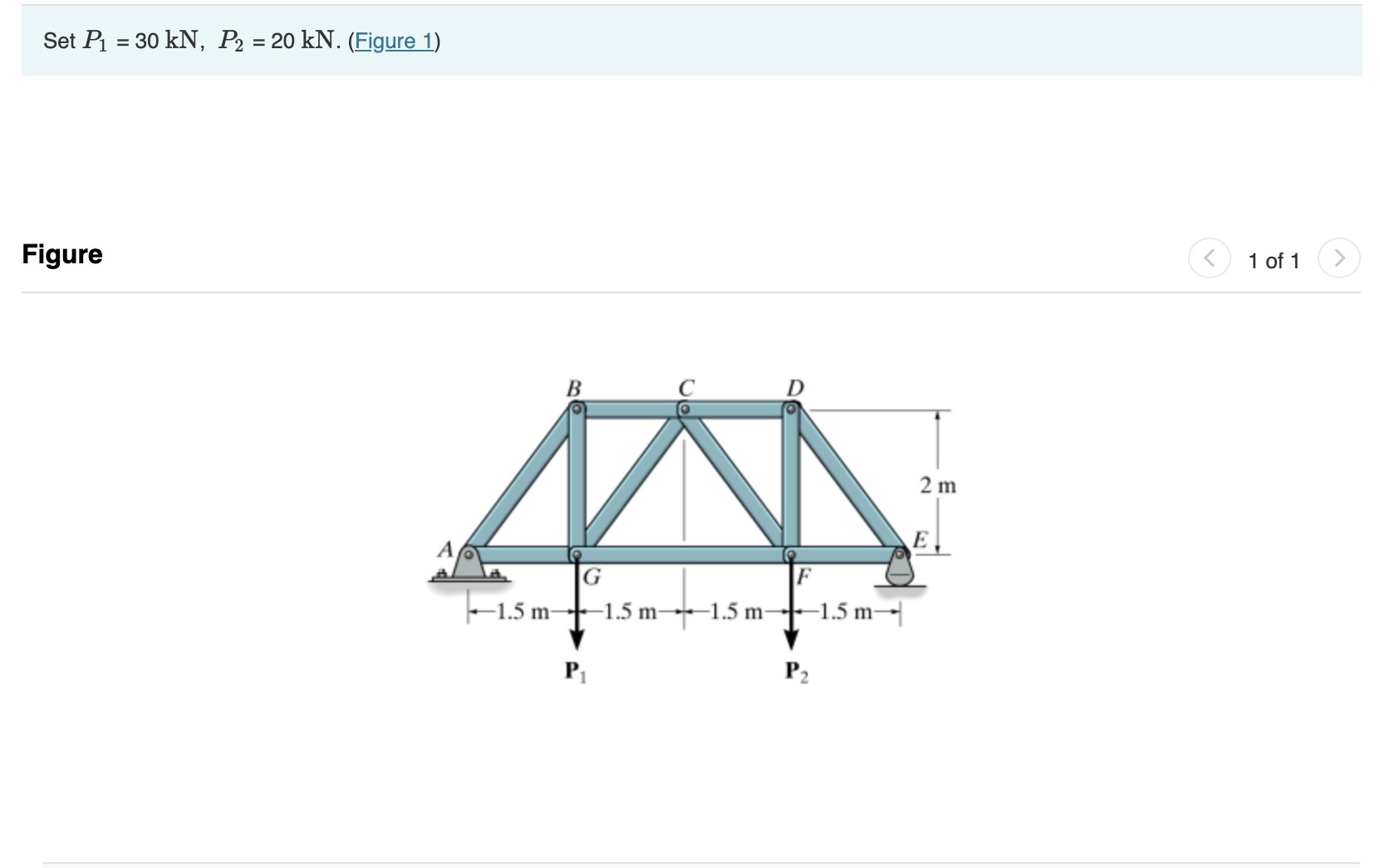

Set P1=30kN,P2=20kN.(Figure 1)
Figure
Part A: Determine the force in member AB
of the truss.
Part B:Determine the force in member AG
of the truss.
Part C:Determine the force in member BC
of the truss.
Part D:Determine the force in member BG
of the truss.
Part E:Determine the force in member CD
of the truss.
Part F:Determine the force in member CF
of the truss.
Part G:Determine the force in member CD
of the truss.
Part H Determine the force in member DE
of the truss.
Part I:Determine the force in member DF
of the truss.
Part J:Determine the force in member EF
of the truss.
Part K: Determine the force in member FG
of the truss.
Set P 1 = 3 0 k N , P 2 = 2 0 k N . ( Figure 1 )
