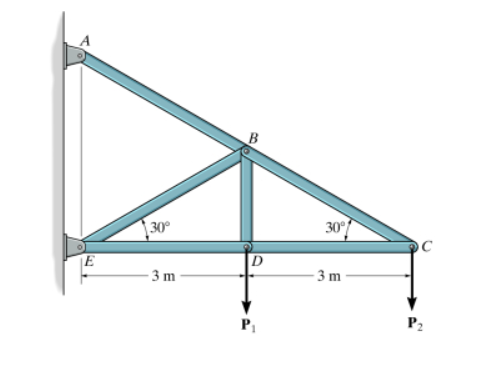

Question: Set P 1 = P 2 = 1 . 5 kN . ( Figure 1 ) Determine the force in member AB of the truss.

Set P1=P2=1.5 kN.(Figure 1)
Determine the force in member AB of the truss.
Determine the force in member BC of the truss.
I l
Determine the force in member BD of the truss.
Determine the force in member BE of the truss.
Determine the force in member CD of the truss.
Determine the force in member DE of the truss.
Set P 1 = P 2 = 1 . 5 kN . ( Figure 1 ) Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Ravioe Set P, -9 kN and P, - 12 kN. (Figure 1) Part A Determine the force in member AB, and stale ir the member is in tension or compression. Express your answer to three significant figures and...
