Question: SHEAR STRESS PROBLEM ( 5 0 points ) For the beam and load shown in the figure, do the following: B ) Determine the maximum

SHEAR STRESS PROBLEM (50 points)

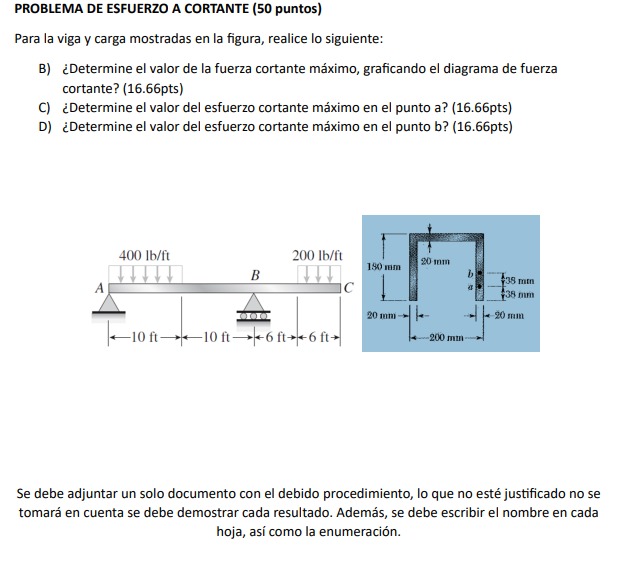

For the beam and load shown in the figure, do the following:
B) Determine the maximum shear force value by graphing the shear force diagram?
C) Determine the value of the maximum shear stress at point a?
D) Determine the value of the maximum shear stress at point b?
SHEAR STRESS PROBLEM ( 5 0 points ) For the beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
