Question: Show all work and make sure to redraw the circuits as you go. 20UF 10UF 15UF 10UF 10UF 5UF 20.0 V 8UF -10UF 10UF 10UF

Show all work and make sure to redraw the circuits as

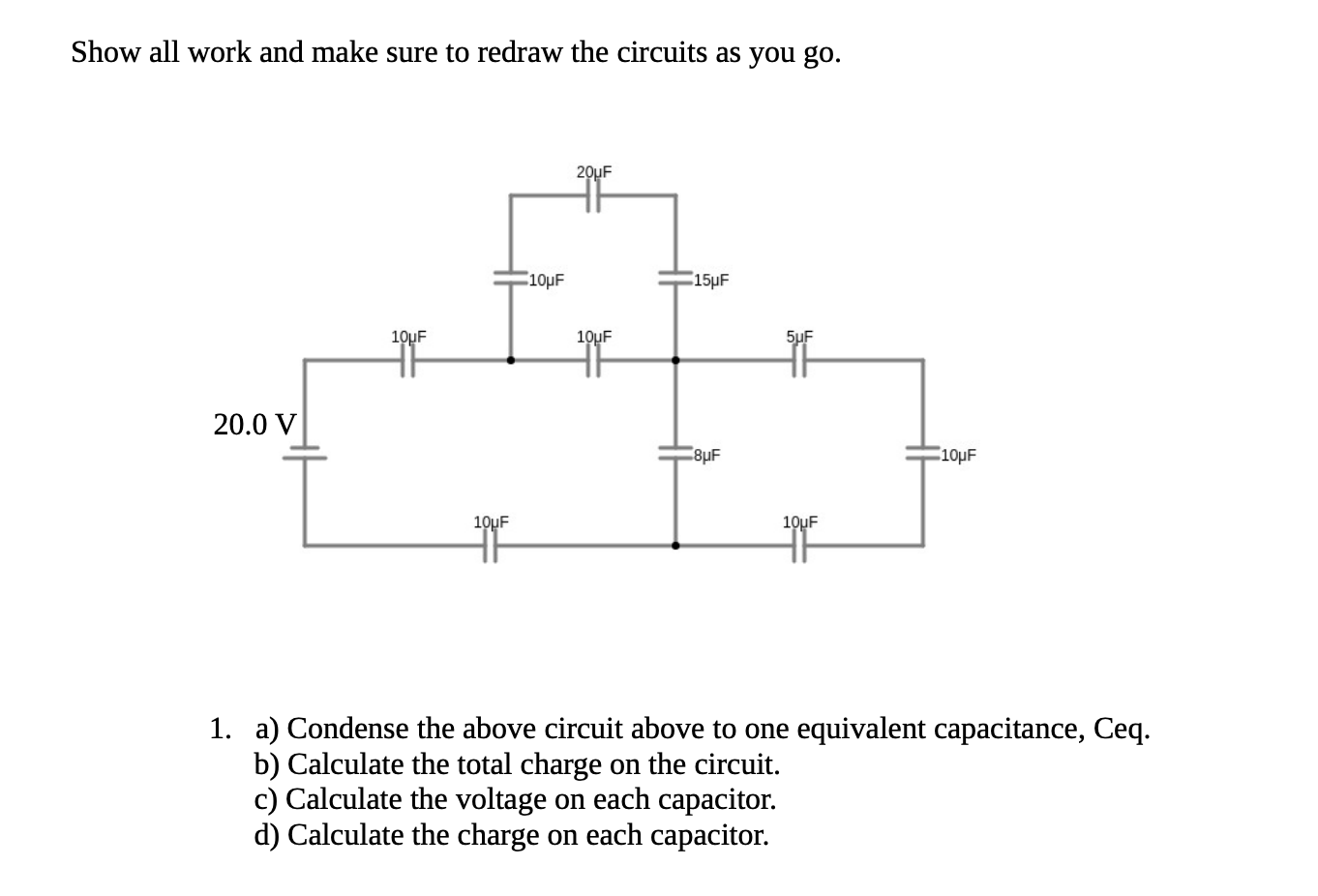

Show all work and make sure to redraw the circuits as you go. 20UF 10UF 15UF 10UF 10UF 5UF 20.0 V 8UF -10UF 10UF 10UF 1. a) Condense the above circuit above to one equivalent capacitance, Ceq. b) Calculate the total charge on the circuit. c) Calculate the voltage on each capacitor. d) Calculate the charge on each capacitor

Step by Step Solution

There are 3 Steps involved in it
