Question: Show me the steps to solve 4 . Using T and D Flip - Flops, reconstruct the following state table with the FF inputs using

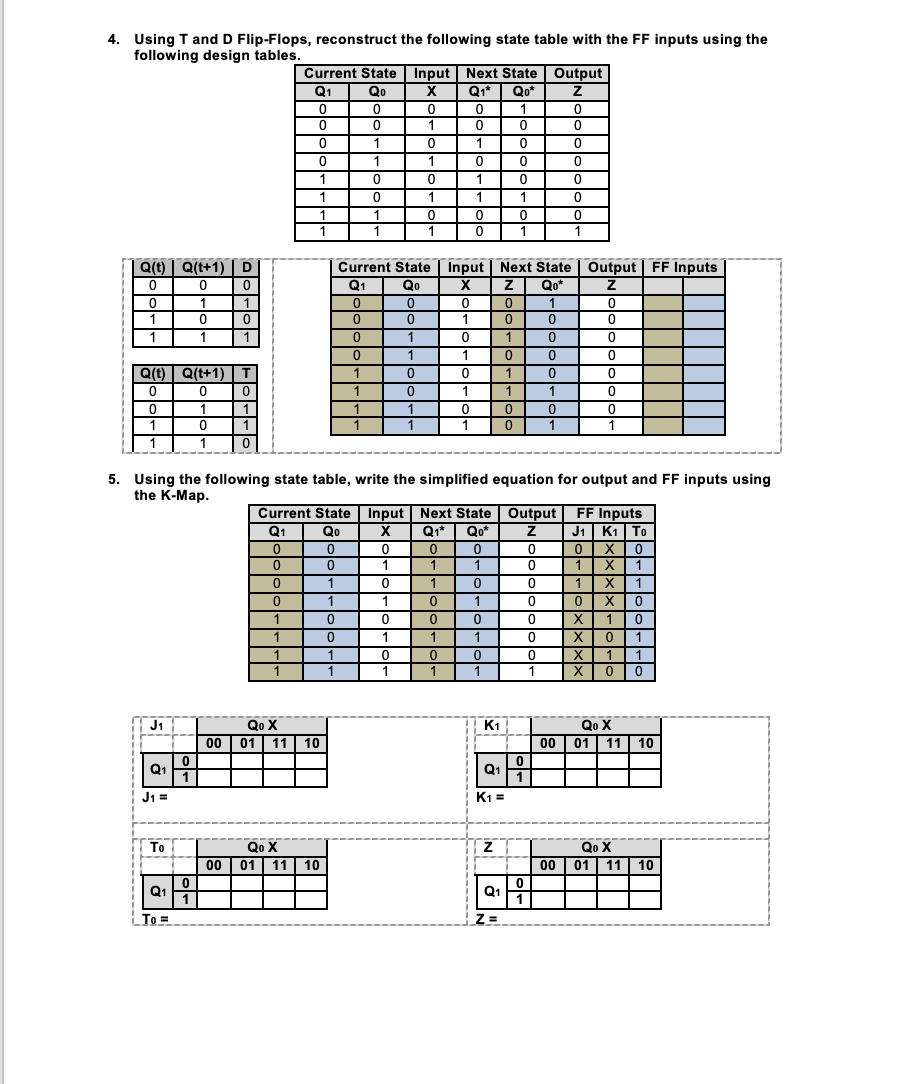

Show me the steps to solve 4. Using T and D Flip-Flops, reconstruct the following state table with the FF inputs using the following design tables.
5. Using the following state table, write the simplified equation for output and FF inputs using the K-Map.
\( J_{1}=\)
T0\(=\)
\(\mathrm{K}_{1}=\)
\( Z=\)
please solve it like the question
Show me the steps to solve 4 . Using T and D Flip

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
