Question: Shown below is the activity relationship chart along with the space requirements for each of the cells in a small auto parts manufacturing facility. Relationship

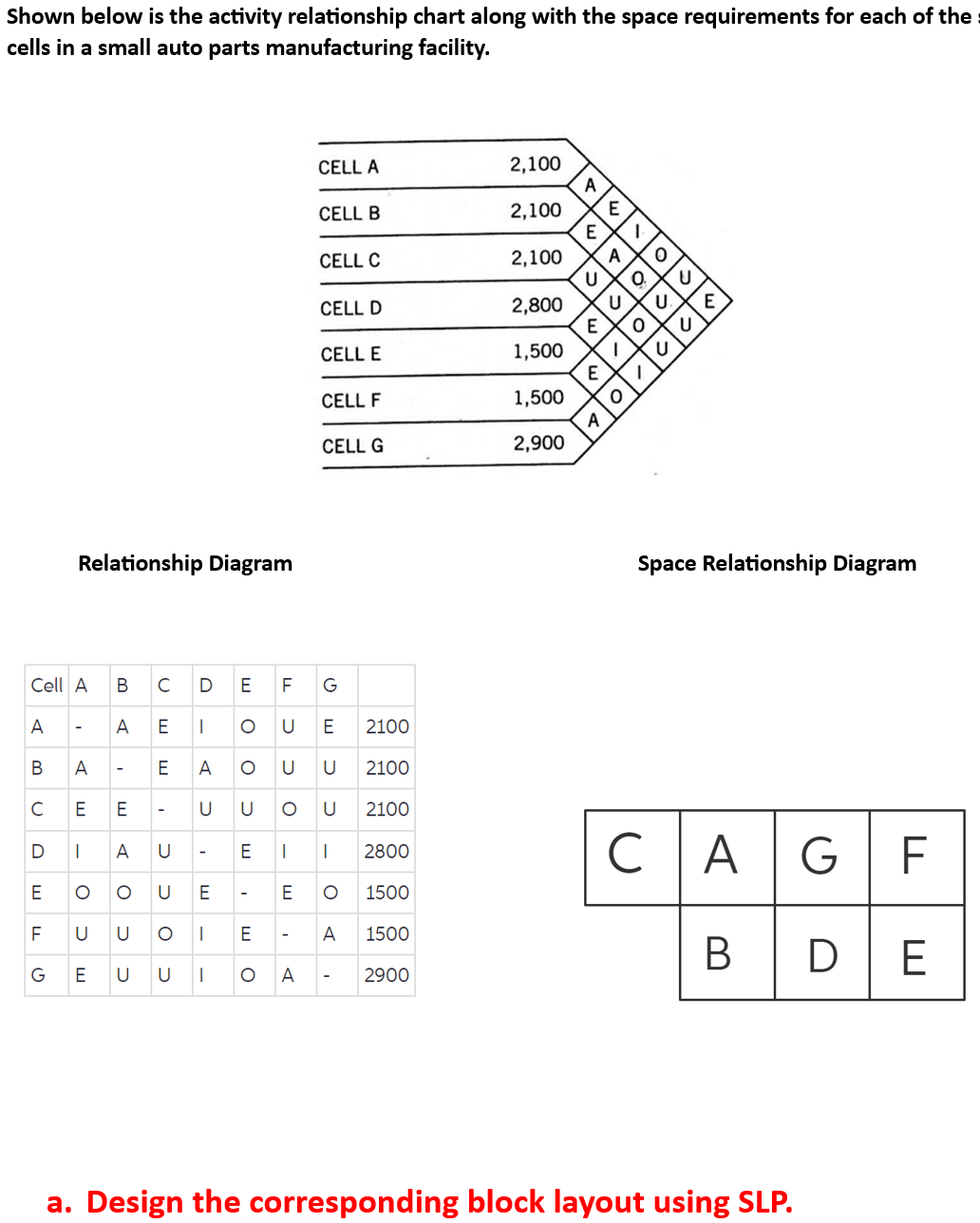

Shown below is the activity relationship chart along with the space requirements for each of the
cells in a small auto parts manufacturing facility.
Relationship Diagram
Space Relationship Diagram
a. Design the corresponding block layout using Systematic Layout Planning.
Shown below is the activity relationship chart along with the space

Step by Step Solution

There are 3 Steps involved in it
