Question: Shown below is the PV-diagram for a counterclockwise cycle. Determine the work done during the cycle, the heat flow during the cycle, & the change

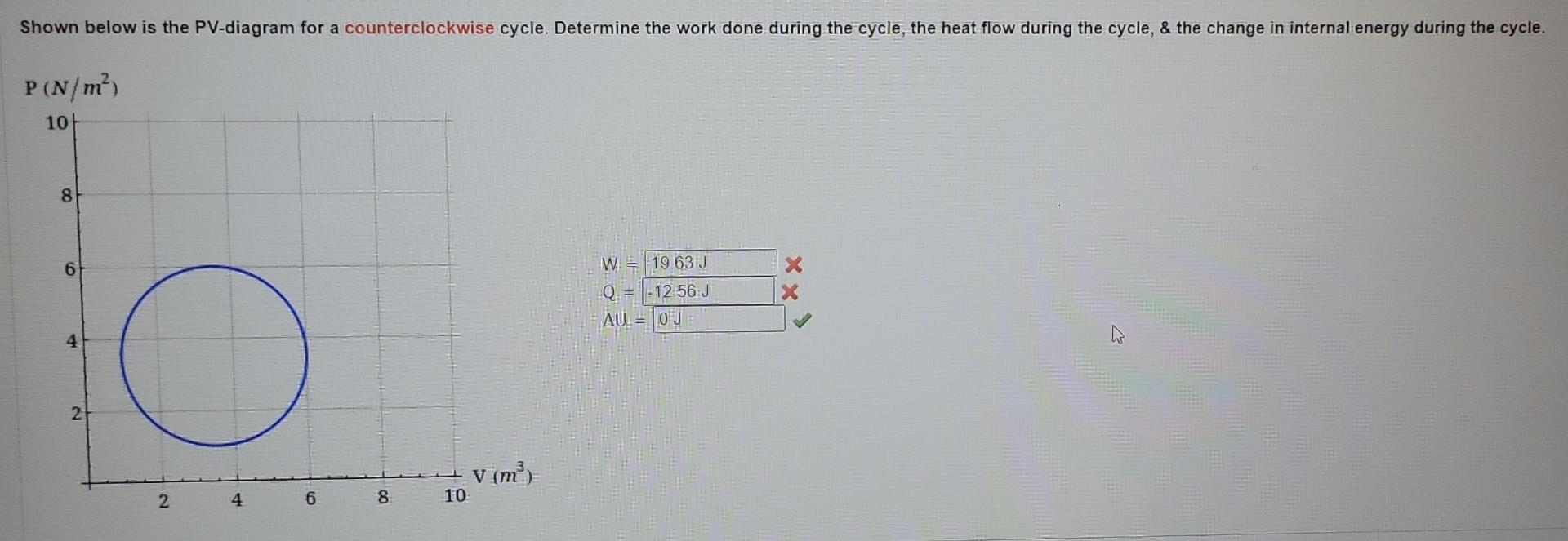

Shown below is the PV-diagram for a counterclockwise cycle. Determine the work done during the cycle, the heat flow during the cycle, & the change in internal energy during the cycle. P ( N/ m) 10 8 6 19 63 J X Q = -12 56 J X AU - OJ V(m) 2 4 6 8 10

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
