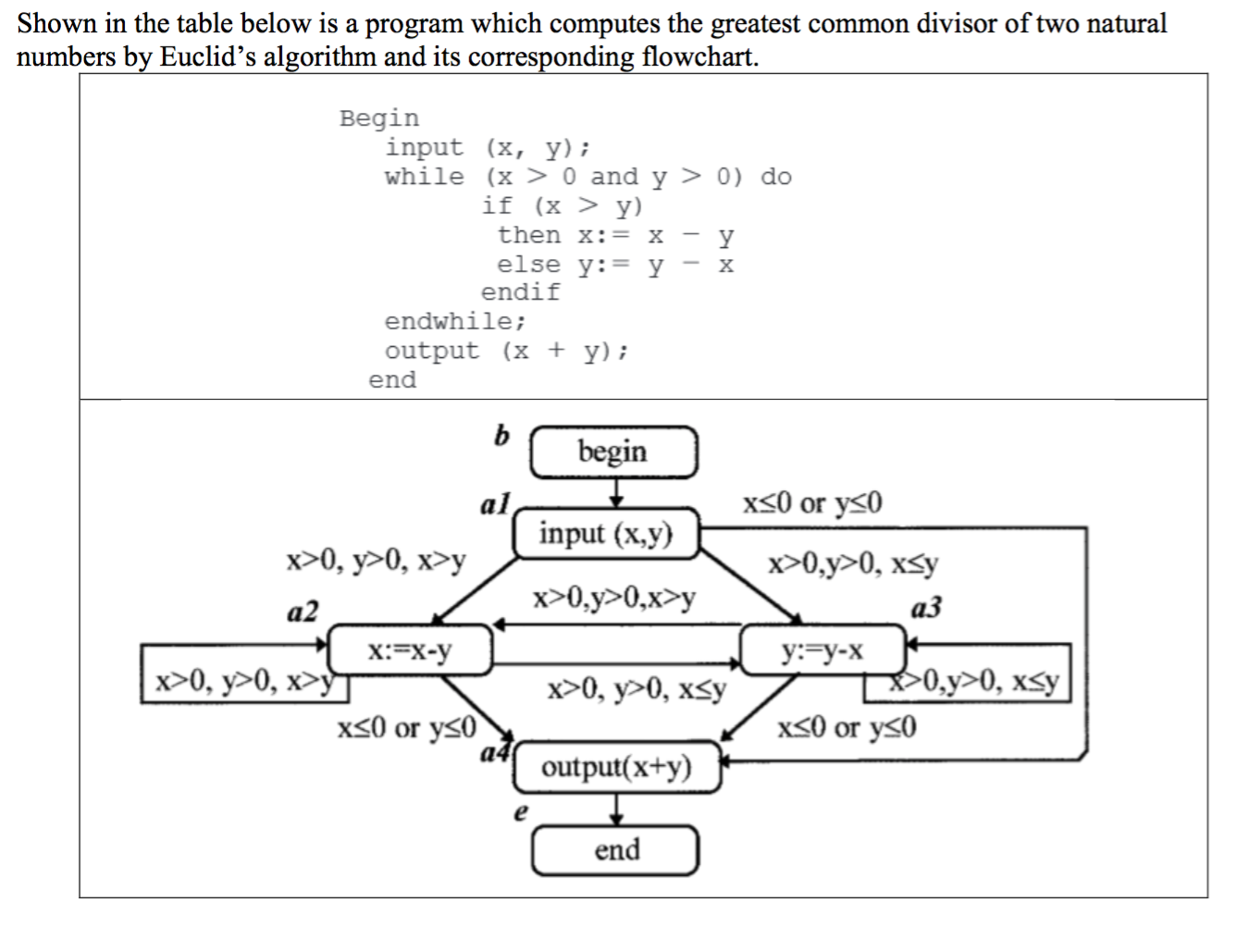

Question: Shown in the table below is a program which computes the greatest common divisor of two natural numbers by Euclids algorithm and its corresponding flowchart.

Shown in the table below is a program which computes the greatest common divisor of two natural numbers by Euclids algorithm and its corresponding flowchart.

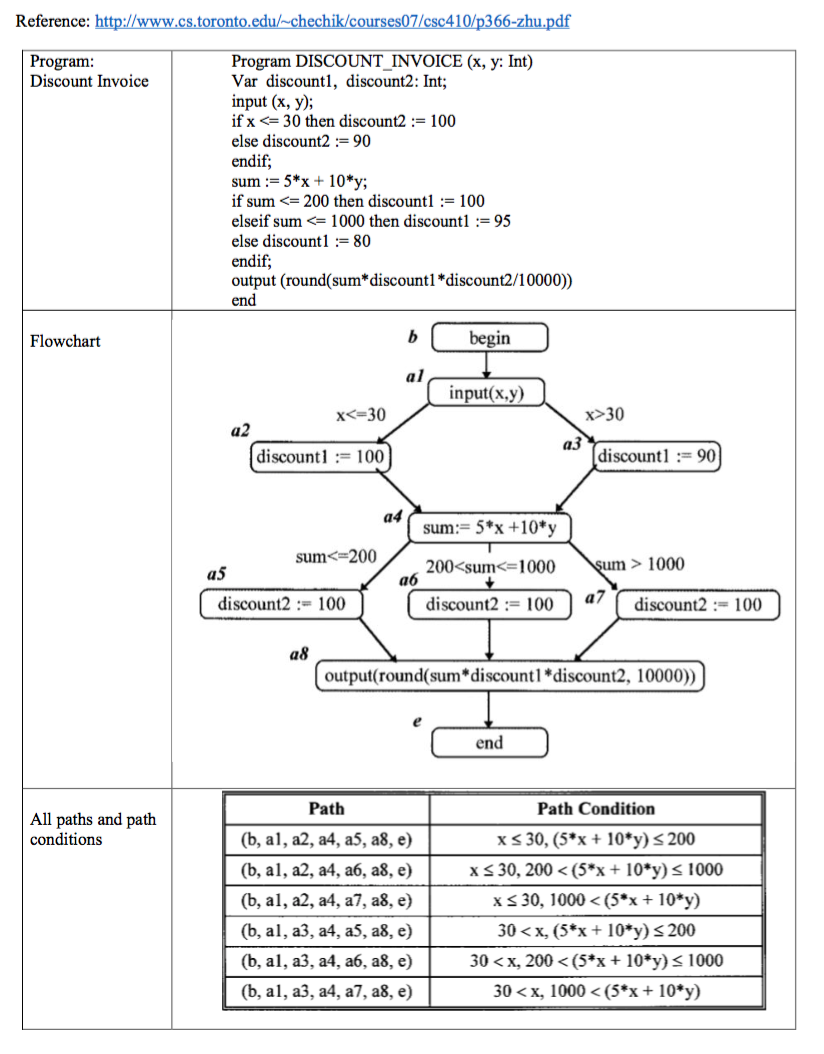

Your task is to create a table to show all paths and corresponding path conditions for the above program. Reference: http://www.cs.toronto.edu/~chechik/courses07/csc410/p366-zhu.pdf See an example.

common divisor of two natural numbers by Euclids algorithm and its corresponding

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
