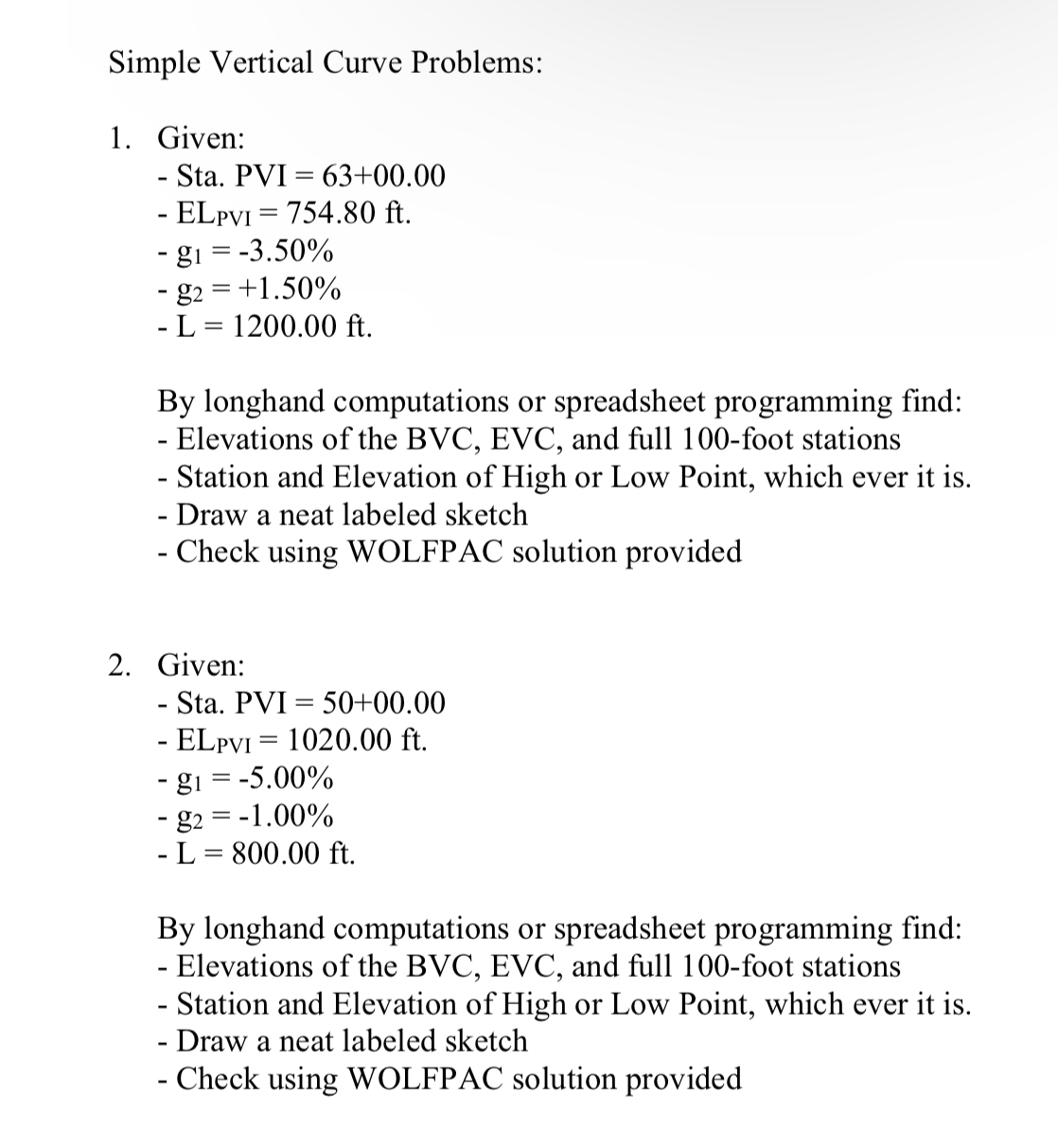

Simple Vertical Curve Problems:

Given:

Sta. PVI $=63+00\mathrm{.}00$

$-E_{\text{P}\text{V}\text{I}}=754\mathrm{.}80ft.$

$g_1=-3\mathrm{.}50\%$

$-g_2=+1\mathrm{.}50\%$

$-L=1200\mathrm{.}00ft.$

By longhand computations or spreadsheet programming find:

Elevations of the BVC$,$ EVC, and full $100-$foot stations

Station and Elevation of High or Low Point, which ever it is$.$

Draw a neat labeled sketch

Check using WOLFPAC solution provided

Given:

Sta. PVI $=50+00\mathrm{.}00$

$-E_{\text{P}\text{V}\text{I}}=1020\mathrm{.}00ft.$

$-g_1=-5\mathrm{.}00\%$

$-g_2=-1\mathrm{.}00\%$

$L=800\mathrm{.}00ft.$

By longhand computations or spreadsheet programming find:

Elevations of the BVC$,$ EVC, and full $100-$foot stations

Station and Elevation of High or Low Point, which ever it is$.$

Draw a neat labeled sketch

Check using WOLFPAC solution provided
